Networking
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
Operational conditions
| Operating relative humidity (H-H) |
5 - 95% |
| Storage temperature (T-T) |
0 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
Design
| Mounting type |
Wall |
| RoHS compliance |
Y |
| Certification |
FCC Part 15, CE |
| Country of origin |
Taiwan |
Weight & dimensions
| Depth |
160 mm |
| Weight |
700 g |
| Width |
195 mm |
| Height |
95 mm |
Performance
| Power over Ethernet (PoE) |
Y |
| Maximum transfer distance |
100 m |
| Type |
Network repeater |
Power
| Power consumption (max) |
2.5 W |
Ports & interfaces
| Power over Ethernet (PoE) ports quantity |
3 |
Packaging data
| Package depth |
235 mm |
| Package weight |
900 g |
| Package width |
170 mm |
| Package height |
110 mm |
Additionally
| Colour of product |
White |
| Packaging type |
Box |
| Ethernet LAN (RJ-45) ports quantity |
3 |
| Operating temperature range (T-T) |
0 - 50 °C |
2-Port Outdoor Fast PoE+ Repeater, 2.5W, 44-57V PoE, IEEE 802.3/u/x/af/at
Extend the reach of your PoE-Plus devices
For system integrators looking for a professional solution to help extend their Outdoor PoE (802.3af/at) network, POR-1202 is the perfect accessory to increase your network performance. As a 2-port repeater, it’s now easier to add more devices to the network for greater deployment flexibility.

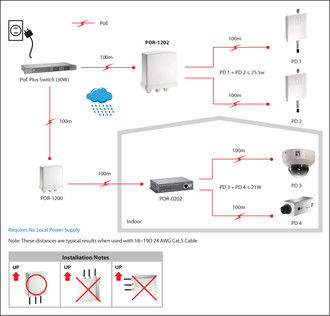

Normal cable runs only reach 100 meters, but with POR-1202 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable, no software required

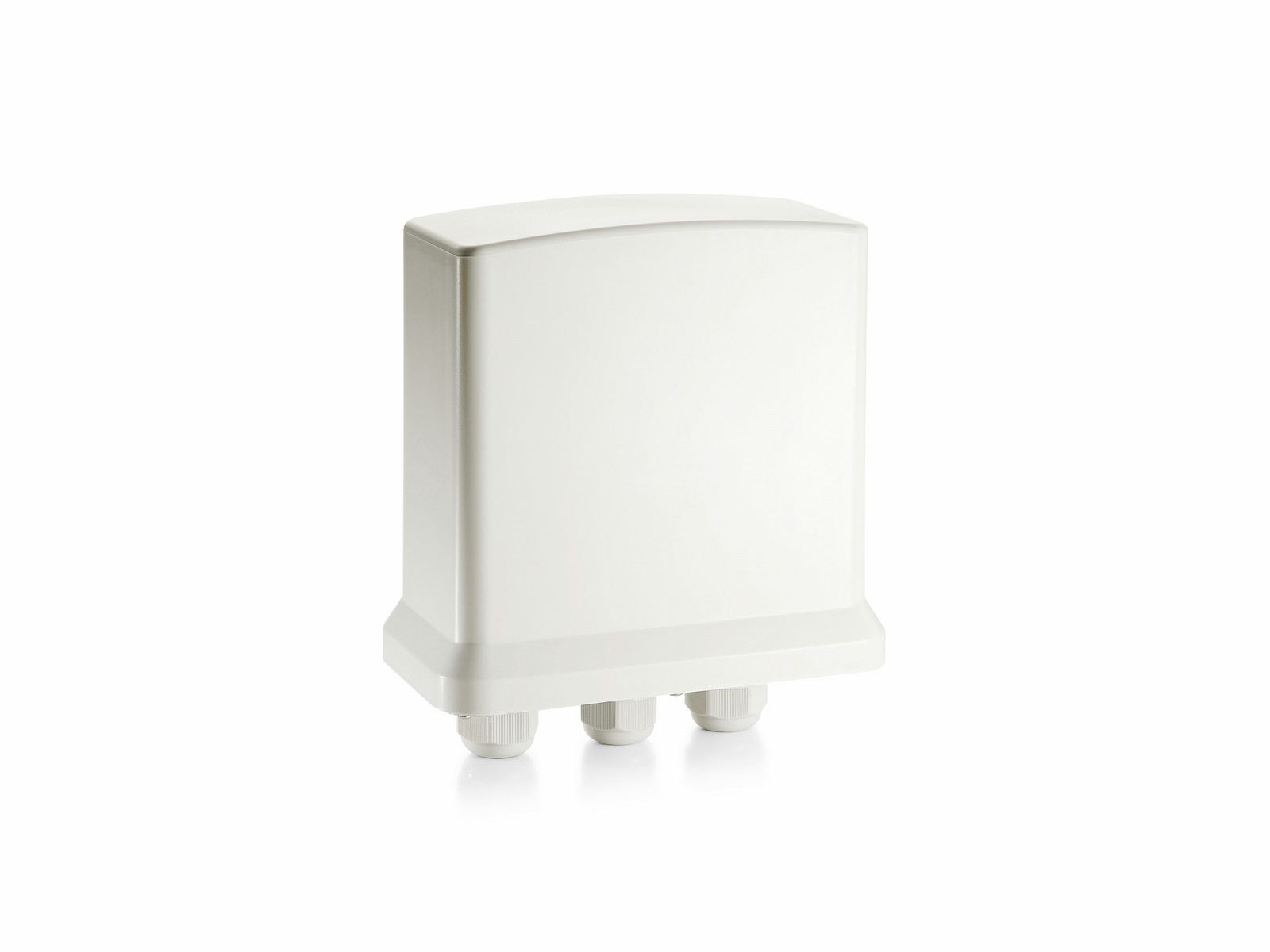

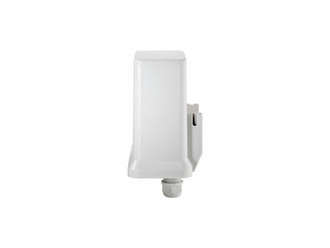

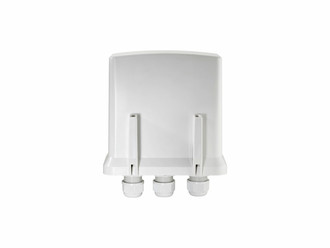

As a PoE-Plus Repeater, POR-1202 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-1202 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-1202 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports that boosts and extends the power and data an additional 100 meters. With a durable metal housing, POR-1202 fits into any tight deployments.
Applications
POR-1202 is a long-ranged solution for deploying PoE IP Cameras and any Fast Ethernet PoE PD powered by 802.3at PSE.
IP65-compliant
The POR-1202 is compliant to IP65, and is therefore weatherproof from snow, rain, storms, desert heat, etc. For deployment in any harsh weather conditions, this PoE Repeater is up to the challenge.
