Ports & interfaces
Power over Ethernet (PoE) ports quantity |
2 |
Power
Power consumption (max) |
2.5 W |
Power over Ethernet (PoE) voltage range |
44 - 57 V |
Performance
Maximum transfer distance |
200 m |
Power over Ethernet (PoE) |
Y |
Type |
Network repeater |
Additionally
Ethernet LAN (RJ-45) ports quantity |
3 |

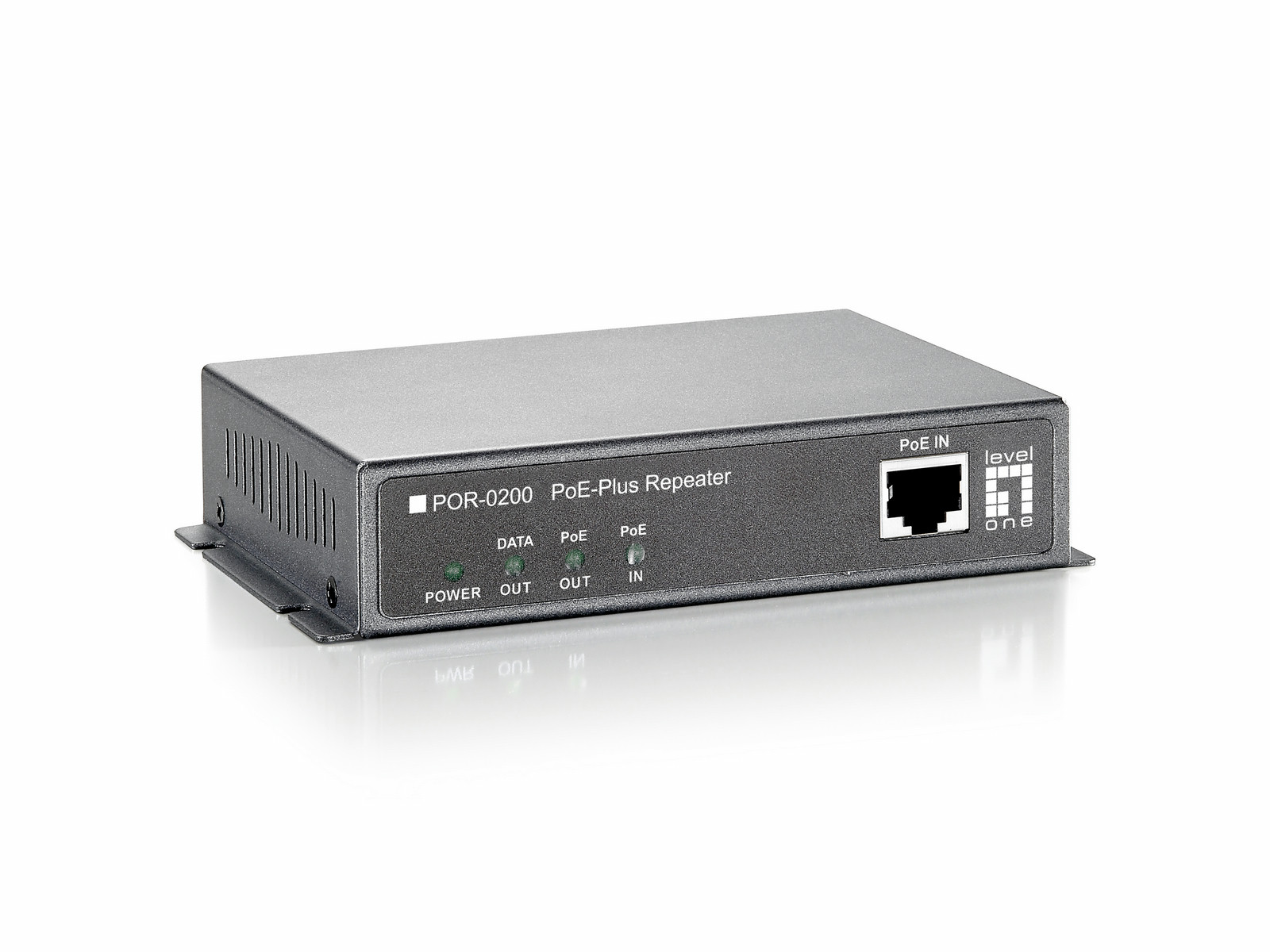

PoE Repeater, Cascade, 802.3at PoE+, 44-57V, 2.5W
<b>Extend the reach of your PoE-Plus devices</b>
For system integrators looking for a professional solution to help extend their PoE (802.3af/at) network, POR-0200 is the perfect accessory to increase your network performance.
Normal cable runs only reach 100 meters, but with POR-0200 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
<b>Simple yet durable, no software required</b>
As a PoE-Plus Repeater, POR-0200 receives all power from the Power Sending Equipment (PSE), such as a PoE-Plus switch. This means that POR-0200 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices on a network. POR-0200 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-0200 fits into any tight deployments.
<b>Applications</b>
POR-0020 is a long-ranged solution for deploying PoE IP Camera and any Fast Ethernet PoE PD powered by 802.3at PSE.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- Forwards Power over Ethernet to remote device
- Extends PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation, no additional power supply required
