Design
| Hot keys |
Y |
| Push button |
Y |
| LED indicators |
Power, Status |
| Material |
Metal |
Packaging content
| Cables included |
KVM |
| Manual |
Y |
Ports & interfaces
| Audio connections |
N |
| Video port type |
VGA |
| Number of computers controlled |
2 |
| Console ports |
VGA (D-Sub) |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| USB 2.0 ports quantity |
4 |
| DC-in jack |
Y |
| VGA (D-Sub) ports quantity |
2 |
Operational conditions
| Operating relative humidity (H-H) |
0 - 80% |
| Storage temperature (T-T) |
-20 - 60 °C |
Other features
| Dimensions (WxDxH) |
157.5 x 71.6 x 29 mm |
Power
| Output voltage |
12 V |
| Output current |
1 A |
Weight & dimensions
| Depth |
71.6 mm |
| Weight |
390 g |
| Width |
157.5 mm |
| Height |
29 mm |
Video
| Maximum resolution |
1920 x 1440 pixels |
Performance
| Maximum cable length |
150 m |
Additionally
| Colour of product |
Black |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 50 °C |
KVM Extender, USB 2.0, RJ-45, VGA, 12V DC, 1A, 1920 x 1440px, 390g

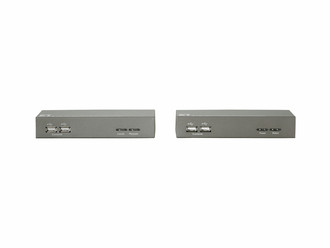

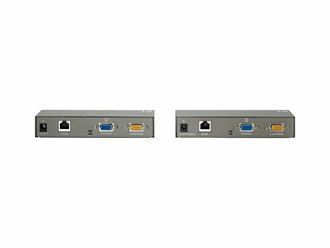

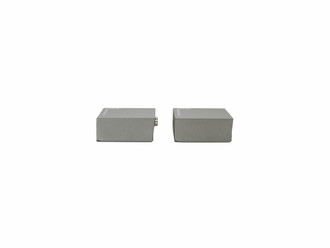

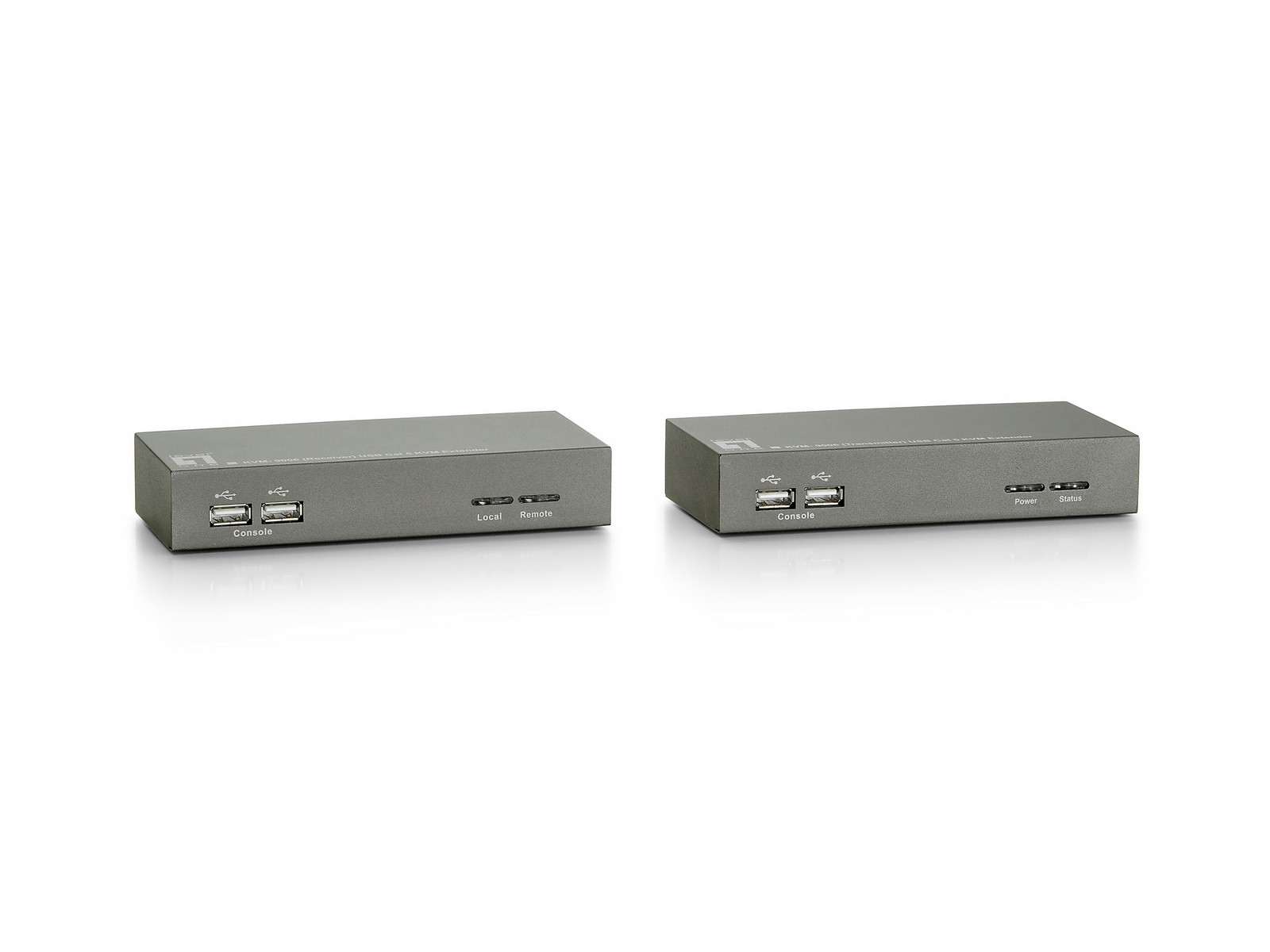

The KVM Cat.5 USB Extender Kit is a pair of devices (Transmitter and Receiver) for highdensity applications where you want full use of the keyboard, mouse, and monitor, but there is no room for a server nearby.
It allows users to access a computer, server or KVM switch up to 150m away. Or for applications where you want to put all computers in a safe place, all that is needed on the desktop is a single keyboard, monitor, and mouse.
KVM-9006 has auto-adjustable RGB gain/delay control capability for superior video performance. On the local console it supports resolution of up to 1920 x 1440 and on the remote side it supports 1280 x 1024.
This makes KVM cat.5 USB Extender and excellent solution for increase your productivity while helping reduce desktop space.
- A single, inexpensive Cat.5 or above UTP cable replaces bulky KVM cables
- Locate Cat.5 console up to 150m away from the KVM switch with superior auto-adjust RGB signals capability
- Collocate computers and servers on one location, ideal for hazardous or unsecured environments
- Switch computers by push button or hotkey commands
- Audible feedback when switching
- LED indicators for computer status or data transmission
- 3-in-1 space saving design
- Work with PS/2 or USB computer
- Easy to install and use with plug-and play functionality
