Other features
| Supported data transfer rates |
6, 9, 12, 18, 24, 36, 48, 54 |
| Transmitter output power |
5.15-5.24/5.26-5.35/5.745-5.85/2.412-2.472 GHz |
| RF-connector |
2-N |
| Wireless technology |
802.11a/b/g |
| Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE802.3af, 802.11i, 802.1x, 802.1Q |
| Networking features |
Fast Ethernet |
Ports & interfaces
| Cabling technology |
10-100Base-T(X) |
Performance
| Receiver sensitivity |
802.11a:\n-88dBm @ 6Mbps\n-70dBm @ 54Mbps\n802.11g:\n-91dBm @ 6Mbps\n-74dBm @ 54Mbps\n802.11b:\n-92 dBm @ 1Mbps\n-95 dBm @ 11Mbps |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Quality of Service (QoS) support |
Y |
| Modulation |
DSSS, OFDM |
| Frequency band |
2.4 - 5.825 GHz |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Channels quantity |
5 channels |
Protocols
| Management protocols |
SNMP v1/v2c/v3 |
| DHCP client |
Y |
| Supported network protocols |
CSMA/CA, PPPoE |
Power
| Power over Ethernet (PoE) |
Y |
| Power supply type |
DC |
Additionally
| Transfer rate (Mbps) |
54 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |

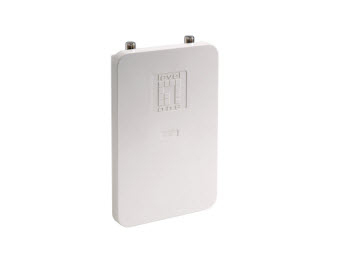

WAB-7400, 802.11a/b/g, 54Mb/s, Fast Ethernet, 450g
54Mbps Dual-Radio Wireless Outdoor PoE Mesh Access Point
- IEEE 802.11a/b/g standard compliant operates on the 2.4 GHz/5 GHz unlicensed ISM spectrum
- Self-configuration and healing Mesh network
- Advanced OLSR (Optimal Link State Routing) protocols find the optimal routing path once the link status is changed or broken
- Support 802.1x (EAP-TLS/TTLS/SIM/PEAP) and 802.11i (WPA/WPA2, AES) high security level
- Support 802.1Q VLAN
- Support WMM extension and bandwidth control
- 802.3af PoE power supply and data transmission
- Support SNMP v1/v2c/v3
- IP-65 Weather proof design
Superior Wireless Mesh Performance
The LevelOne WAB-7400 is a dual-radio wireless mesh access point that was developed to tackle the professional-level wireless challenges any systems integrator will face. Whether it's creating an industrial grade wireless mesh network for a factory or warehouse, or building a flexible network on a large corporate campus, the LevelOne WAB-7400 does the job with simplicity and ease.
Dual Band Technology
When a client needs to transmit surveillance data around the premises, but they also want wireless internet access at each access point, what do you do? The LevelOne WAB-7400 comes dual-radio technology, allowing both requirements to be fulfilled. The 5 GHz radio creates a robust auto-forming and self-healing line of sight backhaul network to handle highbandwidth data, voice, and surveillance streams. The 2.4 GHz radio allows users to connect via the broadcast SSIDs for internet surfing or accessing resources on the LAN. Since each chipset operates on a different frequency, both networks offer professional-class performance with no overlapping interference.
Power over Ethernet (PoE)
With PoE functionality, system installers can deploy WAB-7400 in tight spots on the roof of tall buildings because all power and data is transferred using a single Cat.5 cable.
