Other features
| Wireless technology |
IEEE802.11n |
Power
| Power supply type |
IEEE802.3af |
| Power over Ethernet (PoE) |
Y |
Performance
| VLAN support |
Y |
| Modulation |
16-QAM, CCK, 64-QAM, DQPSK, DBPSK, QPSK |
| 2.4 GHz |
Y |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4 - 2.484 GHz |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
Antenna
| Antenna gain level (max) |
4 dBi |
Additionally
| Transfer rate (Mbps) |
300 Mbit/s |
300Mbps, IEEE 802.11n, 2.4 GHz, 2.4 GHz, WEP, WPA, WPA2, 16dBm, White
<b>BENEFITS</b>
- 2 built-in antennas (4dBi) with 2T/2R MIMO technology for wireless data rates of up to 300Mbps
- Complies with IEEE 802.11n and backwards compliant with 11b/g standards on the 2.4 GHz frequency
- Supports AP, WDS and Repeater Modes
- WEP, WPA, WPA2 and IEEE 802.1x for high level security
- Supports Quality of Service (WMM) to enhance user performance and density
- Multi-SSID with 802.1Q VLAN Tagging in AP mode (up to 4 SSIDs)

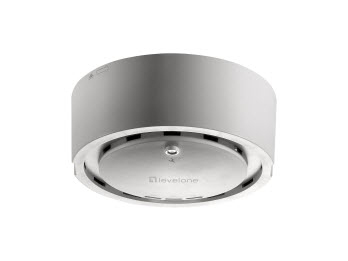

The LevelOne WAP-6102 is a powerful, multi-function, 802.11n Access Point. It provides three operation modes: AP, WDS and Universal Repeater. Its smoke detector appearance minimizes its visibility. So this model is ideal for Hotels or public areas.
<b>Performance and Scalability</b>
The WAP-6102 is a Wireless Network device that delivers up to 6x faster speeds and 7x extended coverage than 802.11g devices. This product’s RF performance is finely tuned so it will bring the best wireless signal to each client. It supports home networks with superior throughput, performance and unparalleled wireless range.
<b>Comprehensive Security</b>
To protect data during wireless transmissions, the WAP-6102 encrypts all wireless transmissions through WEP data encryption and also supports WPA/WPA2. Its MAC address filter allows users to select which stations can access the network. The WAP-6102 is the best product to ensure network quality for wireless hotspots.
