Networking
| Supports ISDN connection |
N |
Security
| Firewall security |
DoS Detection, NAT, SPI |
| System event log |
Y |
| MAC address filtering |
Y |
Other features
| Supported data transfer rates |
10/100/300 Mbps |
| Maximum data transfer rate |
0.3 Gbit/s |
| Networking features |
Ethernet, Fast Ethernet |
| Frequency range |
2.4-2.4835 |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| Supported network protocols |
PPPoE, PPTP, L2TP, DDNS, NTP, IPSec |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
2 |
Wireless LAN features
| Channels quantity |
13 channels |
Additionally
| Ethernet LAN connection |
N |
| Filtering |
IP, Domain, URL |
| Ethernet LAN (RJ-45) ports quantity |
4 |

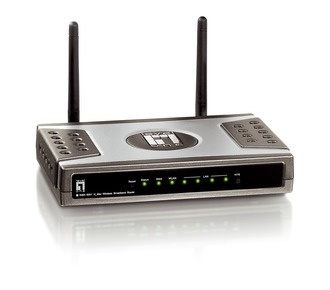

WBR-6001 N_Max Wireless Broadband Router, 300Mbps WLAN, 4x 10/100 Mbps Auto-MDIX (LAN), 1x 10/100 Mbps Auto-MDIX (WAN)
Product Overview
The LevelOne N_Max Wireless Broadband Router is a cost-effective wireless broadband router designed for use at home or a small office. The high-speed wireless broadband router allows users to share an Internet connection, share files among network users and access network resources.
Triple Standard Compliant
The LevelOne WBR-6001 Wireless Broadband router is compliant with the latest draft 11n standard and is backward compliant with 802.11b and 802.11g IEEE standards.
Computers using standard 11g and 11b wireless network cards will benefit from stable connection speeds as well as extended coverage areas.
New notebook computers and desktop computers incorporating the latest draft 11n wireless network cards will be able to connect at draft 11n speeds.
Designed for Home and Small Office
The WBR-6001 Broadband Router is designed for home and small office users who want enjoy audio/video streaming and gaming applications, use the Internet for VoIP calling, share files among the wireless network and get access to network resources at speeds faster than 100Mbps.
Users can now deploy a home or office IP-based wireless surveillance solution without fear of unavailable bandwidth.
Advanced Network Security and Easy Set-Up
The WBR-6001 Wireless Broadband Router provides advanced wireless network protection with 64/128-bit WEP encryption, WPA and WPA2. It provides a double firewall with NAT and SPI firewall protection against DoS attacks and unauthorized packet deliveries from the Internet.
The WBR-6001 also incorporates URL Blocking, VPN Pass-through, 802.1x user authentication and WPS (WiFi Protection Setup) that offers an easy way to connect securely connect to any wireless connection.
Set-up and configuration of security features are managed with the easy to use and explanatory Web-based user-interface.
