Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Security
| VPN support |
PPTP, IPSec, L2TP |
| DoS attack prevention |
Y |
| System event log |
Y |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Networking
| Wake-on-LAN ready |
Y |
| Management protocols |
SNMP |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antenna
| Antenna type |
External |
| Antennas quantity |
1 |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
Other features
| Frequency range |
2.4 - 2.4835 GHz |
| Input current |
1 A |
Additionally
| Ethernet LAN connection |
Y |
| Filtering |
Domain |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
4 x RJ-45 LAN, 1 x RJ-45 WAN, WPS, 10/100 Mbps, 802.11b/g//n
11n Wireless Technology

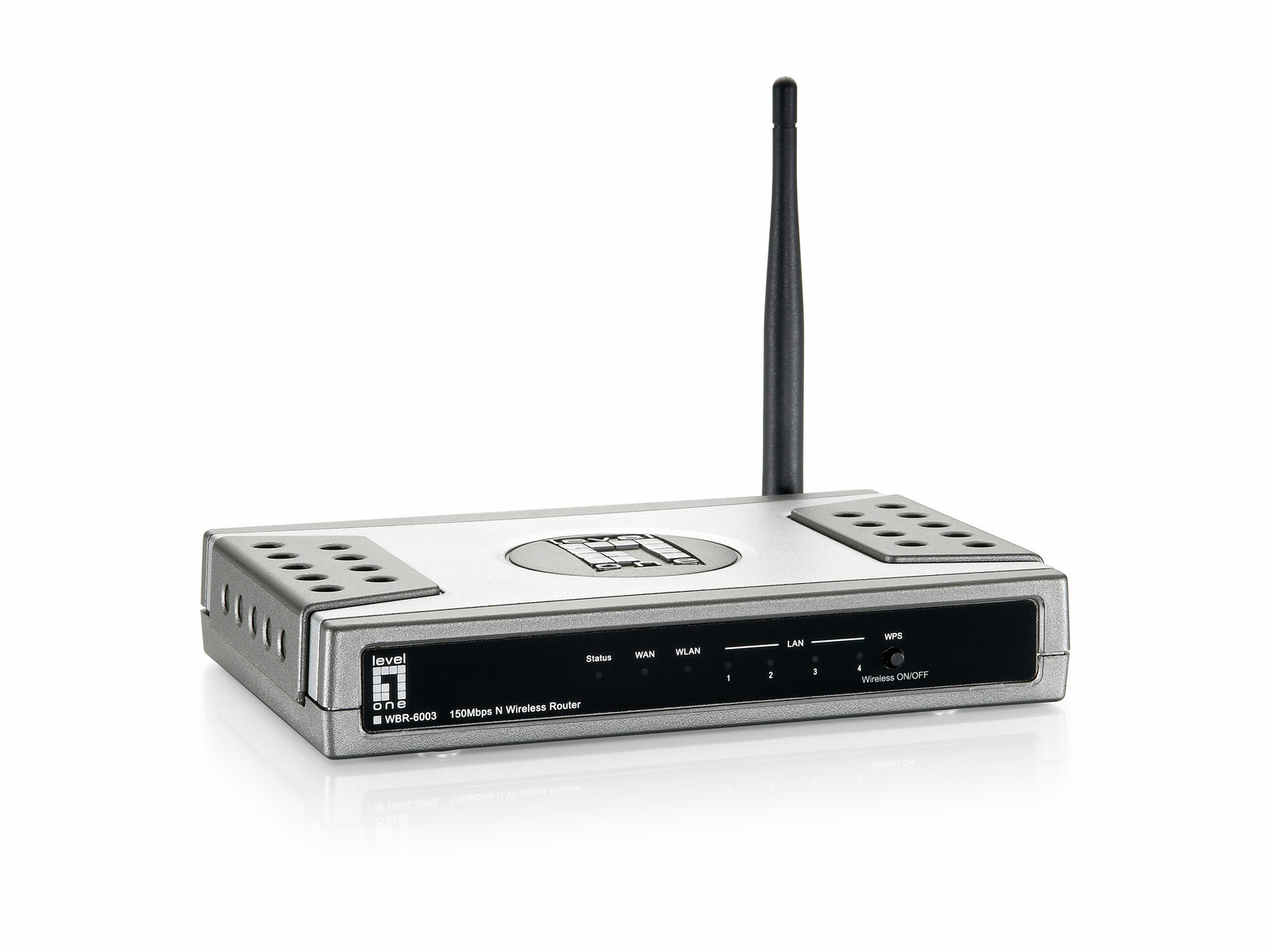

The LevelOne WBR-6003 is a wireless router that offers home and office users the latest 802.11n technology at a competitive price. Rated at 150Mbps, users will notice a significant improvement in wireless throughput compared to the previous standard of 802.11g.
Streaming Video and Music for reliable Entertainment
WBR-6003 is the ideal solution for users who enjoy home network flexibility and require a stable performance. Sharing and streaming files with fast and reliable connections, without any lag or latency when listening to music or watching the latest video.
Simple Security and Setup
The built-in Wireless Signal On/Off Button enables users to decide when the wireless internet access is on/off for greater network control. WPA/WPA2 encryption offers ideal protection against unwanted packet sniffing. The WBR-6003 comes with 802.1x RADIUS support for advanced network configuration. Setting up a secure wireless connection is fast and easy with a WiFi Protected Setup Push Button. Simply push the button and the WBR-6003 negotiates the best security encryption with compatible computers on the network.
Key Features
- Share your wireless network up to 150Mbps
- Auto Channel Selection for low interference band
- Enlarge wireless network coverage through WDS technology
- Wireless signal on/off button
- Effortless wireless security with a simple push of the WPS button
- Built-in Wake-on-LAN feature to startup/shutdown computers remotely
- Built-in robust firewall to protect Internet access against intruders
- Simple setup with user-friendly interface
