Ports & interfaces
| Serial ports quantity |
4 |
| Headphone outputs |
1 |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
Motherboard
| Supported processor frequency (max) |
1.8 GHz |
| Number of processors supported |
1 |
Other features
| Number of SATA connectors |
2 |
| Number of processors installed |
1 |
Graphics
| On-board graphics adapter |
Y |
| Graphics adapter family |
Intel |
Processor
| Processor lithography |
45 nm |
| Thermal Design Power (TDP) |
13 W |
| Processor cores |
2 |
| Processor frequency |
1.8 GHz |
Processor special features
| Execute Disable Bit |
Y |
| Thermal Monitoring Technologies |
N |
| Intel Trusted Execution Technology |
N |
| Intel 64 |
Y |
| Embedded options available |
Y |
| Intel Virtualization Technology for Directed I/O (VT-d) |
N |
| Intel Hyper-Threading Technology |
Y |
| Intel® Turbo Boost Technology |
N |
| Enhanced Intel SpeedStep Technology |
N |
| Intel Demand Based Switching |
N |
Memory
| Supported memory types |
DDR3-SDRAM |
| Memory slots type |
SO-DIMM |
| Number of memory slots |
1 |
| Maximum internal memory |
4 GB |
Storage
| Compatible memory cards |
CF |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Intel AES New Instructions |
N |
| Ethernet LAN (RJ-45) ports quantity |
2 |

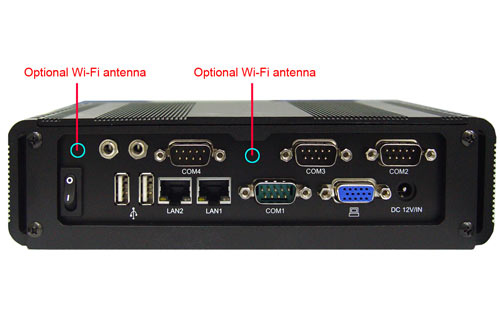

TT2851-00A Barebone NEO System, D525-1.8Ghz, 2x Gigabit LAN, CF, No Mem, No HDD, External 30W Power-Supply
