Ports & interfaces
| DVI port |
Y |
| Composite video in |
1 |
| DVI-D ports quantity |
1 |
| Audio (L,R) out |
1 |
| RS-232C |
Y |
| USB version |
3.0 (3.1 Gen 1) |
| HDMI ports quantity |
1 |
Design
| Bezel width (top) |
11.9 mm |
| Bezel width (bottom) |
18 mm |
Display
| Color gamut |
68% |
| HD type |
Full HD |
| Native aspect ratio |
16:9 |
| Display type |
LED |
Audio
| Sound modes |
Game, Movie, Music, News, Sports, Standard |
| Number of speakers |
2 |
| Audio system |
Clear voice II |
Technical details
| Memory slots |
SD Card (SDHC/Full Size) |
| Weight (with stand) |
17200 g |
| Operating time |
24 h |
Performance
| TV tuner integrated |
N |
| HDCP |
Y |
| Wi-Fi |
Y |
Power
| Energy Star certified |
Y |
| Power consumption (off) |
0.5 W |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |

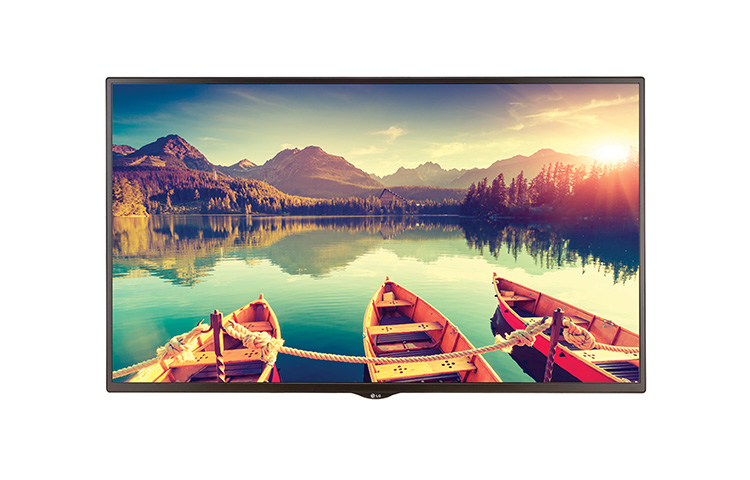

124.46 cm (49 ") LED, 1920 x 1080 FullHD, IPS, 16 : 9, 450 cd/m2, 12ms, 1100:1, 16.7 Million, 68%, HDMI, DVI-D, USB 3.0, Black
Mirroring
Content sharing is more convenient on a Wi-Fi network.
SoftAP
The SM5KB with SoftAP software can operate as a wireless access point for mobile devices.
Simple Installation
Installation has been simplified by removing the external media player and Ethernet/RS232C cables.
Dust & Humidity Protection
Circuit board reliability is enhanced with conformal coating that protects against dust, iron powder, humidity and other harsh conditions.
Advanced Failover
Enables content in the internal or external memory to be displayed without dead spots when none of the external inputs is working. The monitor performs the signal switching automatically.
Screen Fault Detection
Detects screen failure and sends an alert log by email.
Beacon
With BEACON and Bluetooth Low Energy (BLE) supported by SM5B, retail stores can provide coupons and information in real-time.
Conformal coating
Conformal coating helps protect against water, dust and iron powder deposits which accumulate in harsh environments, saving on expensive installation and added enclosure costs.
