Data transmission
| MAC address table |
2000 entries |
| Supported data transfer rates |
10/100 Mbps |
| Switching capacity |
1 Gbit/s |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Packet transfer speed |
0.375 Mbits |
| Bandwidth |
0.2 Gbit/s |
| Input frequency |
50/60 Hz |
| Networking features |
Fast Ethernet |
| Power supply type |
AC |
Networking
| Auto MDI/MDI-X |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Copper ethernet cabling technology |
100BASE-TX |
Management features
| Quality of Service (QoS) support |
N |
Power
| Input voltage |
100 - 240 V |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
N |
| Wireless technologies |
Wired |

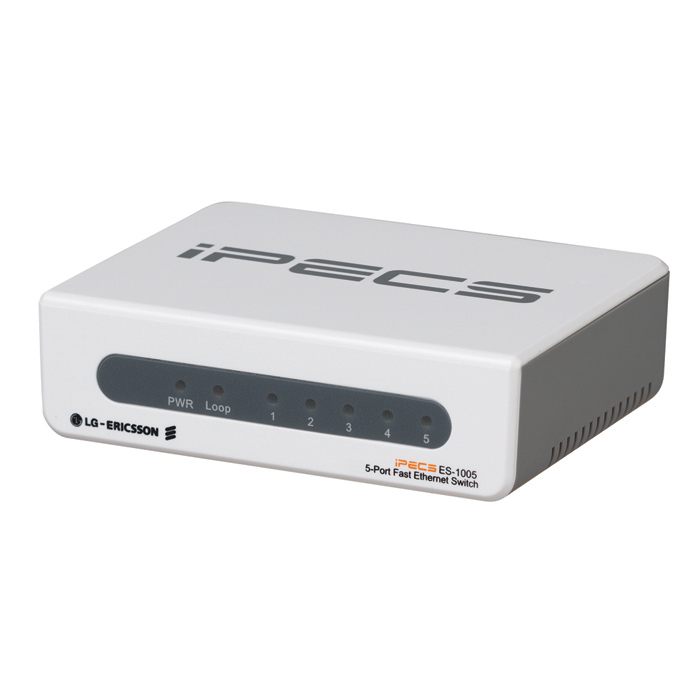

Unmanaged Fast Ethernet Switch, 5 ports, 1 Gbps, 2K, 1.5W
Plug & Play Installation
LG-Ericsson iPECS ES-1000 Fast Ethernet Switches provide a true plug and play installation for connecting networked devices. With the auto-sense, auto-negotiation and auto-MDI/MDIX implemented, these switches easily connect to the network, automatically sense the network speed between 10M and 100Mbps, auto-negotiate the transmission mode at half or full duplex and remove the complexity of tedious setup procedures or cross-over cabling requirements. Each product interoperates seamlessly with the customers’ existing network at full performance without any additional configuration and it is easy to diagnose and monitor the operation status and activity with the per-port diagnostic LEDs.
Full-Duplex Non-Blocking Wire-Speed Switching
LG-Ericsson iPECS ES-1000 Switches can transmit and receive traffic seamlessly in full-duplex mode and at non-blocking wire-speed. Each port supports seamlessly up to 200Mbps of bandwidth for transmitting and receiving packets in full-duplex mode. Please confirm In addition, each port supports auto uplink making it straightforward to design the ES-1000 Switches into your existing network.
Industry Standards Compatibility
LG-Ericsson iPECS ES-1000 Fast Ethernet Switches are compatible with the major industry standards such as IEEE 802.3, 802.3u, 802.3x. These switches are seamlessly built into the customers’ existing networks and deliver the highly reliable performance needed to support SMB IT networks.
Embedded Simple QoS
In addition to the industry standards switch features, LG-Ericsson iPECS ES-1000 Switches incorporate a simple QoS mechanism based on 802.1p tagging and IP TOS. This mechanism uses priority queues, permitting the customer’s network to deal with VoIP traffic in a higher priority. These switches are optimized for small offices to set-up a simple VoIP network with a minimum investment and fully take advantage of the benefits of IP Telephony in an economical way. 802.1p tagging and IP TOS based QoS are pre-configured at the factory based on standards.
Environmentally-Friendly Design
In today’s world, it is critical to build an environmentally-friendly network. Even though the LG-Ericsson ES-1000 Fast Ethernet Switches are entry-level unmanaged switches, they are designed to reduce power consumption based on Link-up/down and cable distance. In addition, their compact size helps reduce both the office and the carbon footprint.
