Management features
| Multicast support |
Y |
| MIB support |
LLDP |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
48 Gbit/s |
| Number of VLANs |
4096 |
| Throughput |
35.7 Mpps |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Authentication method |
TACACS+, RADIUS, IP |
| Connectivity LEDs |
Y |
| Input frequency |
50/60 Hz |
| Power LED |
Y |
| Networking features |
Gigabit Ethernet |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Rate limiting |
Y |
| Full duplex |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| DHCP client |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| SFP/SFP+ slots quantity |
4 |
| Combo SFP ports quantity |
4 |
Performance
| Internal memory |
128 MB |
| Firmware upgradeable |
Y |
| Flash memory |
16 MB |
Security
| Access Control List (ACL) |
Y |
Protocols
| Management protocols |
SNMP, RMONv1, SNTP, HTTP, HTTPS |
| Supported network protocols |
RSTP, STP, MSTP, IPv4, DHCP, TCP/IP |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Power
| Input voltage |
100 - 240 V |
Operational conditions
| Operating altitude |
0 - 4000 m |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

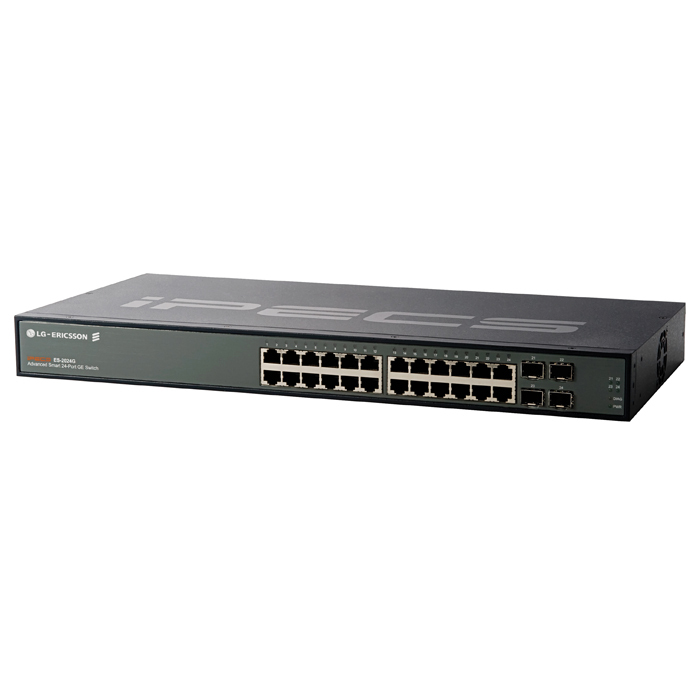

Advanced Smart Managed Switch 24+4 ports, 48 Gbps, 16 MB Flash, 128 MB DRAM, 8K, 4096 VLAN IDs, 23W
Simpler and Smarter Networking for the SMB
iPECS ES-2000 Series are advanced smart Layer 2 switches which are optimized for SMBs looking for reliable and cost effective workgroup switches along with key switching features. These simple to install and easy to manage switches enable administrators to quickly and easily build networks at an affordable cost.
ES-2000 series comes in 9 models from Fast Ethernet to Gigabit Ethernet offering multiple choices to address various demands and network environments flexibly and affordably. In addition, ES-2000 series delivers key layer 2 switching features, QoS, built-in security and Power over Ethernet (POE). The user-friendly intuitive GUI makes it easy to configure the ES-2000 to meet the customer needs. To reduce the complexity and often time-consuming configuration process, LG-Ericsson offers an industry-unique solution, the Unified Device Manager (iPECS UDM). UDM enables network administrators to quickly and easily manage multiple iPECS switches across the network.
These LG-Ericsson switches also incorporate the latest technologies such as Green Ethernet and PoE plus. ES-2000 switches can connect to high power consuming devices like 802.11n APs and multimedia videophones by providing up to 30 watts to these devices while connecting to other low power devices.
FEATURES:
Easy to Install
Auto-negotiation, Auto-MDI/MDIX, At-a-glance tri-colored status LED
Smart Management
Managing multiple iPECS switches from a single intuitive graphic user interface
Green Ethernet
Environment friendly design for power saving via link connection and cable length
VoIP and UC Friendly
Advanced L2/L3 QoS, Economical & Flexible POE via 802.3af & 802.3at
Secure Networking
Secured authentication and encryption, Port security and filtering
