Processor special features
Execute Disable Bit |
Y |
Idle States |
Y |
Thermal Monitoring Technologies |
N |
Intel Virtualization Technology (VT-x) |
Y |
Processor package size |
37.5 mm |
Processor ARK ID |
48505 |
Processor code |
SLBUD |
Intel® Quick Sync Video Technology |
N |
Intel® Insider™ |
N |
Physical Address Extension (PAE) |
Y |
Intel 64 |
Y |
Intel Clear Video Technology |
N |
Intel Dual Display Capable Technology |
Y |
CPU configuration (max) |
1 |
Embedded options available |
N |
Intel Virtualization Technology for Directed I/O (VT-d) |
N |
Intel® Anti-Theft Technology (Intel® AT) |
N |
Intel Hyper-Threading Technology |
Y |
Intel® Turbo Boost Technology |
N |
Intel Enhanced Halt State |
Y |
Intel Clear Video Technology for MID |
N |
Supported instruction sets |
SSE4.2 |
Intel Rapid Storage Technology |
N |
Graphics & IMC lithography |
45 nm |
Intel Fast Memory Access |
N |
Intel Flex Memory Access |
N |
Intel Trusted Execution Technology |
N |
Physical Address Extension (PAE) |
36 bit |
Intel® My WiFi Technology (Intel® MWT) |
N |
Intel vPro Technology |
N |
Intel VT-x with Extended Page Tables (EPT) |
Y |
Intel FDI Technology |
Y |
Enhanced Intel SpeedStep Technology |
Y |
Intel Demand Based Switching |
N |
Intel® Wireless Display (Intel® WiDi) |
N |
Intel® Clear Video HD Technology (Intel® CVT HD) |
Y |
Networking
Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Cabling technology |
10/100/1000Base-T(X) |
Wi-Fi |
N |
Performance
Audio output channels |
7.1 channels |
Audio system |
HDA |
Processor
Processor codename |
Clarkdale |
Memory clock speeds supported by processor |
1066, 1333 MHz |
Memory channels supported by processor |
Dual |
Conflict Free processor |
N |
PCI Express configurations |
1x16, 2x8 |
FSB Parity |
N |
CPU multiplier (bus/core ratio) |
24 |
Processor operating modes |
64-bit |
Processor frequency |
3.2 GHz |
Memory bandwidth supported by processor (max) |
21 GB/s |
Maximum internal memory supported by processor |
16 GB |
Processor cache type |
Smart Cache |
Number of Processing Die Transistors |
382 M |
PCI Express slots version |
2.0 |
Number of processors installed |
1 |
Processor cache |
4 MB |
Processor lithography |
32 nm |
Thermal Design Power (TDP) |
73 W |
Maximum number of PCI Express lanes |
1 |
Stepping |
K0 |
Processor cores |
2 |
Tcase |
72.6 °C |
ECC supported by processor |
N |
Memory types supported by processor |
DDR3-SDRAM |
Bus type |
DMI |
Memory
Memory clock speed |
1333 MHz |
Memory layout (slots x size) |
1 x 2 GB |
Internal memory |
2 GB |
Internal memory type |
DDR3-SDRAM |
Memory slots |
4x DIMM |
Maximum internal memory |
8 GB |
Other features
Ethernet interface type |
Gigabit Ethernet |
Processor manufacturer |
Intel |
Networking features |
Gigabit Ethernet |
Graphics adapter family |
Intel |
Platform |
PC |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
Graphics
Discrete graphics adapter model |
Not available |
On-board graphics adapter family |
Intel HD Graphics |
On-board graphics adapter |
Y |
On-board graphics adapter base frequency |
733 MHz |
Number of displays supported (on-board graphics) |
2 |
Power
Power supply input frequency |
50/60 Hz |
Power supply |
250 W |
Power supply input voltage |
220 V |
Ports & interfaces
VGA (D-Sub) ports quantity |
1 |
DVI port |
Y |
PS/2 ports quantity |
2 |
Headphone outputs |
1 |
S/PDIF out port |
Y |
Microphone in |
Y |
Storage
Number of hard drives installed |
1 |
Hard drive capacity |
500 GB |
Compatible memory cards |
Memory Stick (MS), MicroDrive, MMC, MMC+, MMCmicro, MS PRO, MS PRO Duo, MS Pro-HG Duo, SD, xD |
Total storage capacity |
500 GB |
Card reader integrated |
Y |
Hard drive interface |
Serial ATA II |
Expansion slots
PCI Express x16 slots |
1 |
PCI slots |
1 |
PCI Express x1 slots |
2 |
Design
Number of 5.25" bays |
3 |
Number of 3.5" bays |
1 |
Optical drive
Optical drive type |
DVD Super Multi |
Additionally
InTru™ 3D Technology |
N |
Ethernet LAN (RJ-45) ports quantity |
1 |
System bus data transfer rate |
2.5 GT/s |
Processing die size |
81 mm² |
Ethernet LAN connection |
Y |
Intel AES New Instructions |
N |

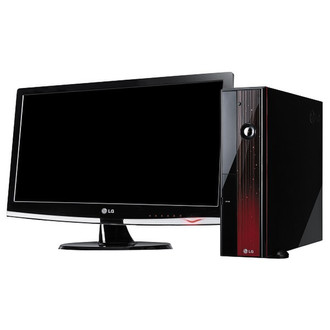

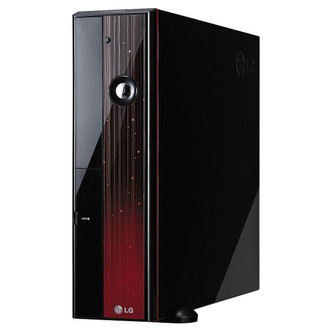

LG T30NH.AR3521. Processor frequency: 3.2 GHz, Processor family: Intel Core i3-xxx, Processor model: i3-550. Internal memory: 2 GB, Internal memory type: DDR3-SDRAM, Maximum internal memory: 8 GB. Total storage capacity: 500 GB, Hard drive capacity: 500 GB, Hard drive interface: Serial ATA II. Optical drive type: DVD Super Multi. On-board graphics adapter model: Intel® HD Graphics, On-board graphics adapter family: Intel® HD Graphics, On-board graphics adapter base frequency: 733 MHz
