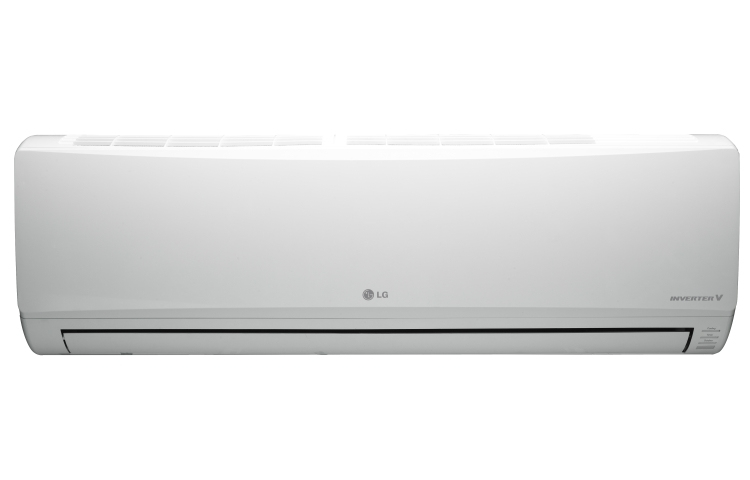

Indoor unit
| Indoor unit depth |
250 mm |
| Indoor unit height |
325 mm |
| Indoor unit width |
1030 mm |
| Noise level (indoor unit) |
45 dB |
| Indoor unit weight |
12600 g |
| Cooling airflow (indoor unit) |
1170 m³/h |
Outdoor unit
| Outdoor unit width |
870 mm |
| Outdoor unit depth |
320 mm |
| Outdoor unit height |
655 mm |
| Outdoor unit weight |
42500 g |
| Cooling airflow (outdoor unit) |
3000 m³/h |
| Noise level (outdoor unit) |
53 dB |
Technical details
| Cooling capacity (min) |
3700 BTU/h |
| Cooling capacity (max) |
24000 BTU/h |
| Refrigerating medium weight |
1410 g |
| Operating temperature (cooling) (T-T) |
18 - 48 °C |
| Type |
Split system air conditioner |
| Refrigerating medium |
R410A |
| Inverter technology |
Y |
| Hose diameter |
21.5 mm |
Power
| Power consumption (cooling) (max) |
2010 W |
| Current |
9.5 A |
Additionally
| Cooling energy efficiency |
3.21 |
3700 ~ 22000 ~ 24000 Btu/h, 1Φ, 220~240V, 50Hz, R410A, Indoor 1030*325*250 mm, Outdoor 870*655*320 mm
Active Energy
Control
Active Energy Control function allows you to select the level of energy consumption depending on the situation. Enjoy a cool and comfortable atmosphere with saving energy.
Energy Saving
Inverter Compressor constantly adjusts a compressor’s speed to maintain desired temperature levels. Moreover, LG Smart Inverter with power saving operation range frequency saves more energy than conventional compressor.
MICRO Protection Filter
powered by 3M Tech
Over 2 million plasmaster lons sterilize not only the air going through the air conditioner, but also harmful substances and odours surrounding the unit.
Fresh Dry
Rainy season comfort keeps your room cool and fresh during the monsoon season and in humid weather by eliminating humidity and maintaining an optimal temperature so you can enjoy true comfort while saving energy. When Fresh Dry mode is used, the PMV(Predicted Mean Vote) range is maintained between -0.5 ~ 0.5.
Comfort Air
Comfort Air conveniently sets the vane to a preset position that deflects the supply air away from blowing directly onto room occupants.
Jet Cool
The optimized design of the air outlet provides more powerful airflow, which cools the room quickly.
Stylish Design
With classic flowing lines, magic display and constant attention to details, its design is a refreshing addition to your home décor.
4-way Auto Swing
4-way swing is able to control air currents according to the environment, achieving optimal distribution of cool air to the living areas and enabling unbelievably quick cooling speeds.
