Performance
| Channel bandwidth |
40 MHz |
| Receiver sensitivity |
-96 - -74dBm |
| VLAN support |
Y |
| Transmitting power |
29 dBmW |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Wireless isolation |
Y |
| Operating modes |
WDS, iPoll 2, ARP NAT |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Auto Wireless Distribution System (WDS) |
Y |
| Bandwidth |
5 GHz |
| Quality of Service (QoS) support |
Y |
| Modulation |
16-QAM, 64-QAM, BPSK, QPSK |
| Frequency band |
2.412 - 2.462 GHz |
| Syslog |
Y |
| Maximum outdoor range |
10000 m |
| Channels quantity |
4 channels |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
Protocols
| Routing protocols |
IP |
| Management protocols |
HTTP(S) GUI, SSH, SNMP, WNMS, |
| DHCP client |
Y |
Power
| Input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
Y |
| Power consumption (max) |
4.5 W |
Design
| Placement |
Pole, Wall |
| Internal |
N |
Antenna
| Antenna gain level (max) |
14 dBi |
Packaging content
| Quick start guide |
N |
| Mounting kit |
Y |
Additionally
| Transfer rate (Mbps) |
150 Mbit/s |

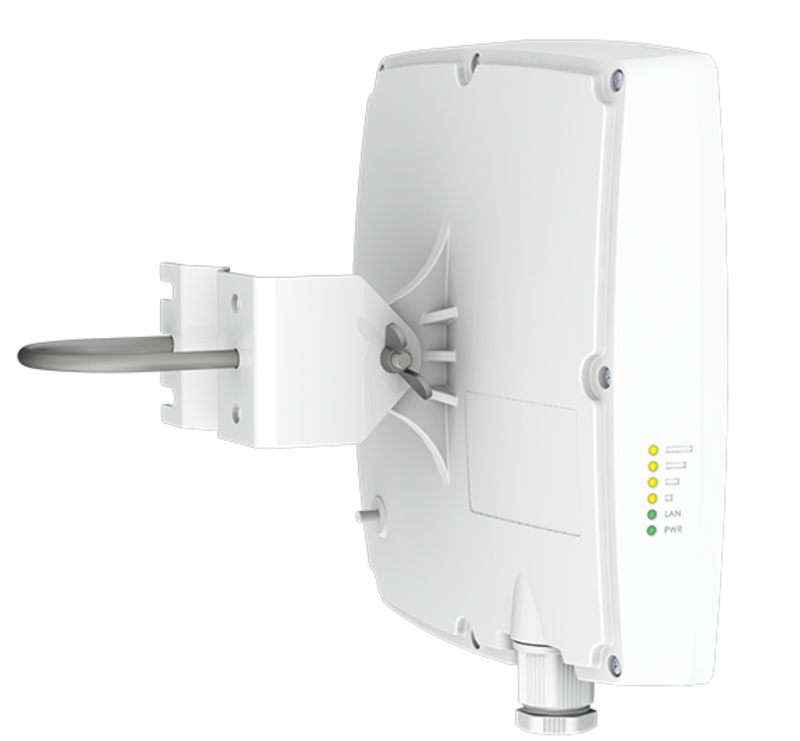

2.4-2.5GHz, 80.000 PPS, 170 Mbps, 14dBi, IP-66, WNMS, 8020.11b/g/n, 4.5W, White
New Hardware platform
Powerful new generation CPU ensures better performance delivering higher up to 170 Mbps capacity and almost 2 X higher packet per second rate (80000). Narrow (5 and 10 MHz) channel support ensures steady performance in noisy environments. More RAM improves the performance with multiple users connected to a single base-station and larger flash stores a 2nd failover firmware image.
Integrated surge protection
3 kV line to ground and 1 kV line-to-line protection allows operating in a harsh weather conditions and unstable electrical installations.
New OS
New operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client. New generation DLB devices are backwards compatible with APC series from Deliberant even when using iPoll protocol. In order to achieve this a new firmware image has to be installed on all APC devices (v7.0 or later).
iPoll 3 – enhanced performance protocol
LigoWave’s iPoll™ PTMP (Point to Multi-Point) proprietary protocol is an innovative solution to eliminate transmission congestion and close cluster interference created in PTMP wireless installations.
Hotspot scenario support
Starting from v7.52 Infinity firmware image can be used on a LigoDLB series devices for the outdoor hotspot and other related applications. After the firmware upgrade DLB devices are converted into access points for outdoor hotspot networks and will lose the functionality of point-to-point or point-to-multipoint connectivity.
WNMS
WNMS is a FREE enterprise grade Wireless Network Management System. A single software solution simplifies a large number of management and monitoring tasks for the network administrator.
