Ports & interfaces
| Parallel ports quantity |
1 |
| Host interface |
PCIe |
Performance
| Supports EPP and ECP |
Y |
| Chipset |
Oxford OXPCIe840 |
| Supported protocols |
SPP |
Other features
| Ports quantity |
1 |
| Mac compatibility |
N |
| Form factor |
LP |
| Platform |
PC |
| Data transfer rate |
1.5 Mbit/s |
Additionally
| Wireless technologies |
Wired |

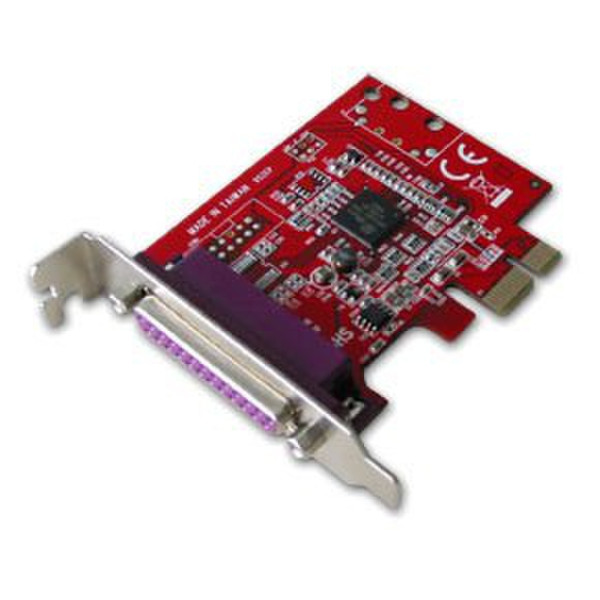

1 Port Low Profile Parallel Card, PCIe
This card is finished to a high standard to allow for easy and safe installation, and it is backed by the LINDY full technical support service. The finger contacts are gold-plated to limit oxidisation and extend the life of the card.
- Low profile PCIe
- Speed: Up to 1.5Mbps
- Built-in 32 byte hardware FIFO
- SPP/EPP/ECP compatible
- IEEE 1284 standard
- Supports PCIe Base Specification Rev 1.1
- Supports x1, x2, x8, x16 (lane) PCIe Bus connector keys
- Card Connector: 25 Way D Female
- Software Compatibility: Windows 2000/ME/XP/Vista/Windows 7/Server 2003, 2008, Linux Kernel 2.6.x
- Chipset: Oxford OXPCIe840.
