Other features
| Power LED |
Y |
| Management level |
2 |
| Wi-Fi |
N |
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
| Number of VLANs |
4000 |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| IP routing |
Y |
| 10G support |
N |
| Full duplex |
Y |
Ports & interfaces
| SFP/SFP+ slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Fiber ports quantity |
2 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Combo SFP ports quantity |
4 |
Power
| Number of power supply units |
1 |
Performance
| Packet buffer memory |
0.5 MB |
| Stackable |
Y |
Design
| Ventilation fan(s) |
1 |
| Form factor |
1U |
Management features
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

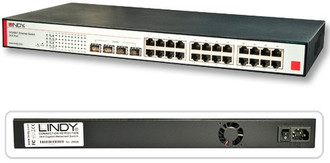

Network Switch - 24 Port 10/100/1000Base-TX + 4 Port Mini GBIC Managed Switch
Gigabit Ethernet switch with web management facility!
This high performance managed SNMP layer 2 switch provides users with 24 Gigabit Ethernet 10/100/1000Mbit/sec ports and 4 shared Mini GBIC ports. Its management function can be accessed via an in-band IP access from a local or remote location.
This switch is suitable for enterprise companies or SOHO users who want to build up a high speed network or backbone. With single-mode or multi-mode fibre transceivers you can link remote users or share remote resources. A web interface management facility provides control capability over TCP/IP. This makes operation easy to manage with a browser at the local or remote side.
- Fully manageable layer 2 network switching hub with access via IP.
- 24 x 10/100/1000Base-TX RJ-45 Gigabit Ethernet ports, 4 are shared with the Mini GBIC ports.
- 4 x Mini GBIC slots for Gigabit Ethernet LC fibre modules.
- SNMP / RMON support for network analysis and monitoring.
- Up to 8K MAC entries and 4K VLAN entries.
- 500KB packet buffer.
- 19" standard rackmount size (brackets included).
This switch supports both port-based VLANs and 802.1q (tag-based) VLANs. To increase bandwidth application it supports port trunking with up to 8 ports. Non-blocking and maximum wire speed performance is supported on all switched ports. It also supports an auto-negotiation and Auto MDI/MDI-X function on all switched 10/100/1000 RJ-45 Gigabit ports.
Specifications:
- Standards: IEEE 802.3ab (1000Base-T), 802.3u (100Base-TX), 802.3 (10Base-T), 802.3x (Flow Control Support), 802.1q (VLAN).
- 24 x 10/100/1000Base-TX RJ-45 Gigabit Ethernet ports, 4 are shared with the Mini GBIC ports.
- 4 x Mini GBIC slots for Gigabit Ethernet LC fibre modules (LINDY Part No. 25015).
- Auto negotiation support for each port.
- Full/Half-duplex operation.
- Up to 8K MAC entries and 4K VLAN entries.
- 500KB packet buffer.
- Supports port based and 802.1q (tag-based) VLANs.
- Supports port trunking with up to 8 ports.
- SNMP/RMON support.
- Supports IGMP Snooping function for Video Broadcasting over IP.
- Non-blocking, full-line speed, store-and-forward technology.
- Fully manageable layer 2 switch with access via IP.
- Cable requirements: Gigabit requires RJ-45 STP/UTP twisted pair cable, CAT5e or higher.
- LED indicators: Power, Speed & Link/Activity, Diagnostics.
- 19" standard rackmount size (brackets included).
- Dimensions: 19" 1U, 442 x 214 x 45mm (WxDxH).
