Ports & interfaces
| Parallel ports quantity |
1 |
| Serial ports quantity |
2 |
| Host interface |
PCIe |
Performance
| Supports EPP and ECP |
Y |
| Chipset |
MOS |
Other features
| Ports quantity |
3 |
| Mac compatibility |
N |
| Data transfer rate |
15 Mbit/s |
Additionally
| Wireless technologies |
Wired |

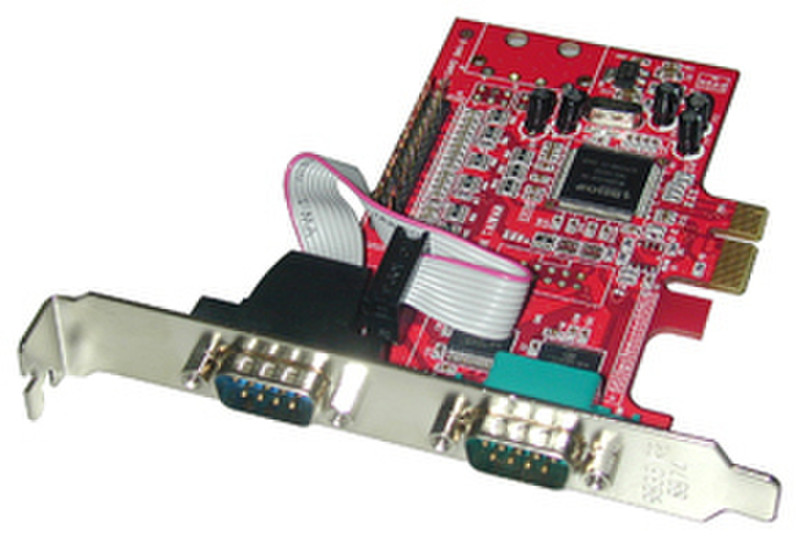

2 Port RS-232 Serial & 1 Port Parallel Card, PCI Express
This card is finished to a high standard to allow for easy and safe installation, and it is backed by the LINDY full technical support service. The finger contacts are gold-plated to limit oxidisation and extend the life of the card.
- Software Compatibility: Windows 2000/XP/Vista/Windows 7/Server 2003, 2008, Linux
- Supports PCI Express Specification Revision 1.1
Serial Port:
- Speed: Up to 921Kbps
- Card Connector: 2 x 9 Way D Male
Parallel Port:
- Speed: Up to 15Mbps
- Separate Back Plate: 25 Way D Female
- Parallel port can be configured as ECP (Enhanced Capabilities Port), EPP (Enhanced Parallel Port) or SPP (Standard Parallel Port).
