Power
| External power adapter |
Y |
| Operating voltage |
5 V |
| Current |
1.2 A |
Technical details
| Type |
AV receiver |
| Cable types supported |
Cat6 |
| Maximum transfer distance |
250 m |
| Audio system |
mono |
Ports & interfaces
| RJ-45 input ports |
1 |
| VGA (D-Sub) output ports |
1 |
| DC-in jack |
Y |

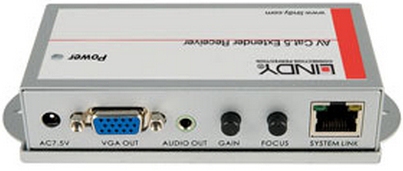

CAT5e/6 VGA & Audio Receiver, 250m
<b>Part of our modular range for distributing VGA signals!</b>
This compact product allows VGA and audio signals to be transmitted up to 250m over CAT5e or higher cables. It is designed for use with our compatible single port or 8 port transmitters to provide an easy method of extending the signals. A 3.5mm jack is provided to connect to a display's audio input (for connecting to desktop speakers you can use a LINDY 3.5mm jack coupler).
- Single port CAT5e VGA Receiver for use with to following Transmitter units: Single Port Transmitter, Part No. 32763; 8 Port Transmitter, Part No. 32762.
- Allows signals to be transmitted up to 250m using low cost CAT5e/6 cable (not included) or our UTP CAT5e Solid Core cable (not included).
- Supports resolutions up to 2048 x 1536.
- Adjustable gain and focus control.
- Connectors: VGA Female; 3.5mm audio jack (mono only); RJ-45 Female.
- Tough, metal housing - ideal for industrail and commercial use.
- Magnetic base for secure installation onto a metal shelf in a cabinet.
The LINDY VGA Extender System is a range of modular devices for distributing VGA and mono audio signals over a very long distance using CAT5e, or higher, network cable. The range consists of three transmitter units and two receivers which can be mixed and matched according to your requirements. Depending on the required video resolution, transmission distances of up to 250m are possible making the VGA Extender System an ideal choice for digital signage, public display and video distribution installations.
