Ports & interfaces
| DVI output ports |
1 |
| DVI input ports |
1 |
| Serial ports quantity |
2 |
| DC-in jack |
Y |
Technical details
| Number of connectors |
2 |
| Maximum transfer distance |
5000 m |
| Resolution |
1920 x 1200 pixels |
| Bandwidth |
6 Gbit/s |
| Type |
AV transmitter & receiver |
Power
| Current |
2.6 A |
| Operating voltage |
5 V |
Fibre Optic DVI-D Extender, 5km, 1920x1200, 6Gbps, 5V/2.6A DC
<b>Extends DVI-D Video up to 5km using a single fibre optic cable!</b>
- Extends DVI-D signals at distances of up to 5km using a single SC Duplex single mode cable
- Compatible with DVI-D 2.0 specifications, HDTV and HD-Ready displays
- Supports HDTV resolutions up to 1920 x 1200 @ 60Hz / 1080p @ 60 Hz
- 6Gbps Total Bandwidth over Single 2-core Fibre Optic Cable Link
The LINDY Fibre Optic DVI-D Extender is the most high performance solution on the market for sending DVI-D signals over incredible distances. Using a standard SC duplex single mode (9/125µ) fibre optic cable (not included) to make the long distance connection, the DVI-D Extender provides full support for computer DVI-D Single Link and HDTV DVI-D signals, RS-232 and IR remote control.
Unlike other manufacturer's solutions, the LINDY Fibre Optic DVI-D Extender uses just one duplex fibre cable - no additional cables are required for RS-232 or IR remote control.
<b>DVI-D, RS-232 and IR remote control over a single cable!</b>

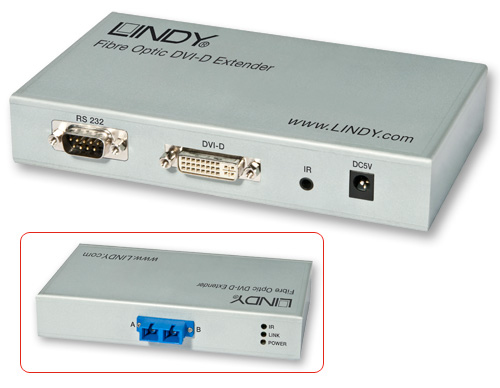

The extender system comprises two modules, a transmitter and a receiver, which are connected to both the DVI-D source and display using standard DVI-D cables of up to 5m. The modules are then connected together using a single, standard SC duplex single mode fibre cable of up to 5km in length (fibre optic cable is not included)
