Technical details
| HDCP |
Y |
| Type |
AV transmitter |
Weight & dimensions
| Transmitter weight |
500 g |
| Transmitter dimensions (WxDxH) |
96 x 130 x 25 mm |
Ports & interfaces
| Serial ports quantity |
1 |
| RJ-45 input ports |
3 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |

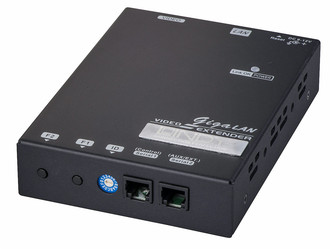

HDMI 1080p Video Wall Over IP Gigabit Ethernet Extender, Transmitter
This HDMI over Gigabit IP Video Wall Extender allows you to distribute an HDMI signal up to 1080p via Ethernet network to multiple displays for applications such as digital signage, public display and large scale presentations. These extenders convert the HDMI signal to IP broadcast signals. Network devices can be used to distribute the signals. These extenders support 1-to-1 (Unicast), 1-to-many (Multicast), many-to-many (Multicast) and video wall (1x2 up to 8x8) configurations, with Transmitters and Receivers available separately to give you the maximum flexibility in your installation.
In Unicast mode a Transmitter is used with a single Receiver, this can be via a direct connection or via a Gigabit network. When using a Gigabit network it is possible to simultaneously use up to 4 pairs of Transmitter and Receiver, by setting different pairing codes on each Transmitter and Receiver pairing.
In Multicast mode a Transmitter can be connected to up to 1000 Receivers via a Gigabit network with hubs supporting IGMP & Snooping functions, or via a dedicated Gigabit network. In addition, up to 4 Transmitters may be used simultaneously on a single network, each connected to up to 1000 Receivers, again by setting different pairing codes on each Transmitter and Receiver group pairing.
In video Wall mode a Transmitter is connected to multiple Receivers via a Gigabit network with hubs supporting IGMP & Snooping functions and configured by Web GUI into a video wall. It is possible to create a video wall from 2x1, 2x2 up to 8x8, all of which can be duplicated multiple times across a network.
