Mounting
| Maximum weight capacity |
45 kg |
Ergonomics
| Tilt angle |
-8 - 18 ° |
| Swivel angle range |
-50 - 50 ° |
| Distance to the wall (min) |
32 mm |
| Distance to the wall (max) |
538 mm |

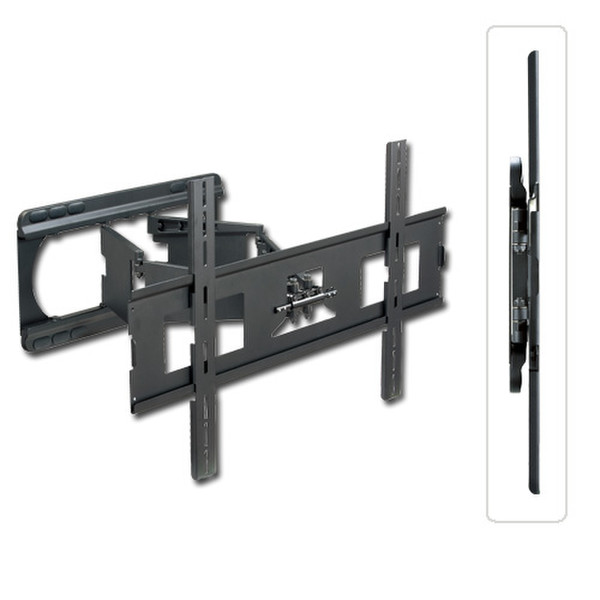

Slimline Cantilever Double Arm Plasma & LCD TV Wall Bracket
<b>The LINDY Cantilever wall bracket can support LCD or Plasma TV's up to 45kg and has a minimum depth of 3.2cm.</b>
- Universal fit, supports most plasma and LCD displays weighing up to 45kg
- Compatible with displays with mounting screw hole distances of up to 800mm high and 400mm wide
- Powder coated black finish
- Allows your display to be mounted just 32mm from the wall
- Max distance from the wall is 538mm
- Adjustable design allows the screen to be tilted upwards of 8° and downwards up to 18°
- Can also be rotated 50° either left or right
- All tilting and rotating adjustments can be done by hand - no tools required
- Supplied with all fixtures and fittings
This sturdy slimline bracket allows you to mount your LCD or plasma TV to a wall. It consists of all the required fittings for mounting to timber uprights or a masonry wall. The design allows the TV to be mounted from only 3.2cm up to 53.8cm from the wall while it can also be adjusted up and down as well as left and right.
