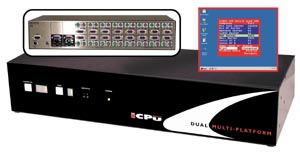

LINDY Matrix CPU Switch Dual Multi-Platform, 16 Port, 2 Users
Control up to 16 SUN/Mac/PC computers simultaneously from two locations!
The LINDY Matrix CPU Dual Multi-Platform allows two users to simultaneously access up to 16 SUN, Mac and PC computers using USB keyboards and mice from any platform. This overcomes the limitations imposed by other KVM switches, which only allow control via PC keyboards and mice, and have a limited functionality.
- Dual Console control of up to 16 computers
- Console operation is via a USB keyboard, USB mouse and VGA monitor
- Mixed AT & PS/2 keyboard and PS/2 & RS-232 mouse computer ports supported as standard
- LINDY Multi-Platform KVM Converter Cable (Part No. 42867) allows USB enabled SUN, Mac and PC computers to be connected
- SmartBoot feature automatically boots all machines during power up
- Channel switching by front panel keys, keyboard hotkeys or mouse button
- Automatically restores keyboard and mouse states when channel is changed
- Supports high bandwidth monitors up to 1990 x 1440
- OVQ circuit means Optimum Video Quality even over extended distances
- Supports keyboard modes 1, 2 & 3, mouse prompt and stream modes for maximum compatibility
- Power and activity indication confirm correct operation
- Standard cable connections for PCs with PS/2 keyboard/mouse ports
- All ports are active simultaneously - the connected computers may all be booted at the same time
- Mouse restoration functions to enable 'hot plugging' of certain systems
- Robust metal case ensures good shielding and video quality
- Supports RS6000 computers
- Includes screen saver, auto-scan and variable hotkey options
- Confirmation of selected ports on local and cascaded CPU Switches
- Support for up to 2 simultaneous users
- Individual On-Screen Display for each user allowing computers to be selected by name
- User logon option
- Security access allowing the administrator to restrict certain computers to certain users only
- Flash upgradeable - firmware can be upgraded by connecting the switch to a computer's serial port and running a download program (requires additional cable)
- DDC1/DDC2 support for "Plug & Play" monitors
- Individual power-down reset for each user port without affecting another operation
- Multiple channel cascadability
- Optional 19" rackmount kit
- Made in Europe
- 3 Year Warranty
