Networking
| Cabling technology |
1000Base-T, 1000Base-SX |
Other features
| Fiber type |
SC |
| Full duplex |
Y |
| Interface |
Ethernet |
| Compliance industry standards |
IEEE 802.3ab, 802.3z |
Performance
| Maximum transfer distance |
550 m |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Wireless technologies |
Wired |

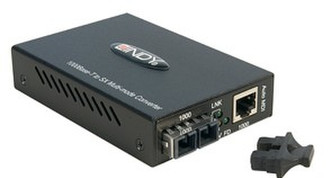

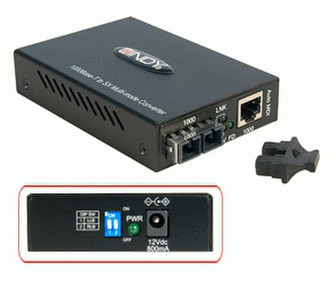

SC Gigabit Ethernet Fibre Optic Converter, 1000Base-T to 1000Base-SX, Multimode
Extend your Gigabit Ethernet network up to 550m over multi-mode fibre optic cable!
This Gigabit Ethernet Fibre Optic Converter allows you to convert and extend the distance of your Gigabit Ethernet network by up to 550m over fibre optic cable. The fibre optic signal is totally immune to electromagnetic and radio frequency interference, and electrically isolated - ideal for high speed interconnections up to 2000Mbps (Full-duplex) between buildings and floors.
- 1000Base-T (copper) to 1000Base-SX (fibre)
- Standards: IEEE 802.3ab, 802.3z
- Connectors: SC (fibre), RJ-45 (copper)
- Maximum fibre cable distance - 550m using 50/125µm multi mode cable, 220m using 62.5/125µm multi mode cable
- Network data transfer rate: 2000Mbps (Full-duplex)
- Auto MDI/MDI-X support for RJ-45 port connection
- Status LED for Power and Link/Activity
- External power supply 12V DC, 0.5A
- Dimensions: 72 x 110 x 23mm (WxDxH).
