Networking
| Supports ISDN connection |
Y |
| Receiver sensitivity |
-80 dBm @ 11 Mbps, -70 dBm @ 54 Mbps, -61 dBm @ 130 Mbps, -61 dBm @ 270 Mbps |
Security
| Firewall security |
SPI |
| MAC address filtering |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
DSL features
| DSL specification |
Annex B, Annex L, Annex M |
| ADSL |
Y |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Other features
| xDSL connection |
Y |
| Rack mounting |
N |
Antenna
| Antenna gain level (max) |
1.8 dBi |
| Transmit power |
802.11b: 17,0 ± 1,0 dBm, 802.11g: 15,0 ± 1,0 dBm, 802.11n: 13,0 ± 1,5 dBm dBmW |
| Antennas quantity |
1 |
Wireless LAN features
| Modulation |
16-QAM, 64-QAM, QPSK |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

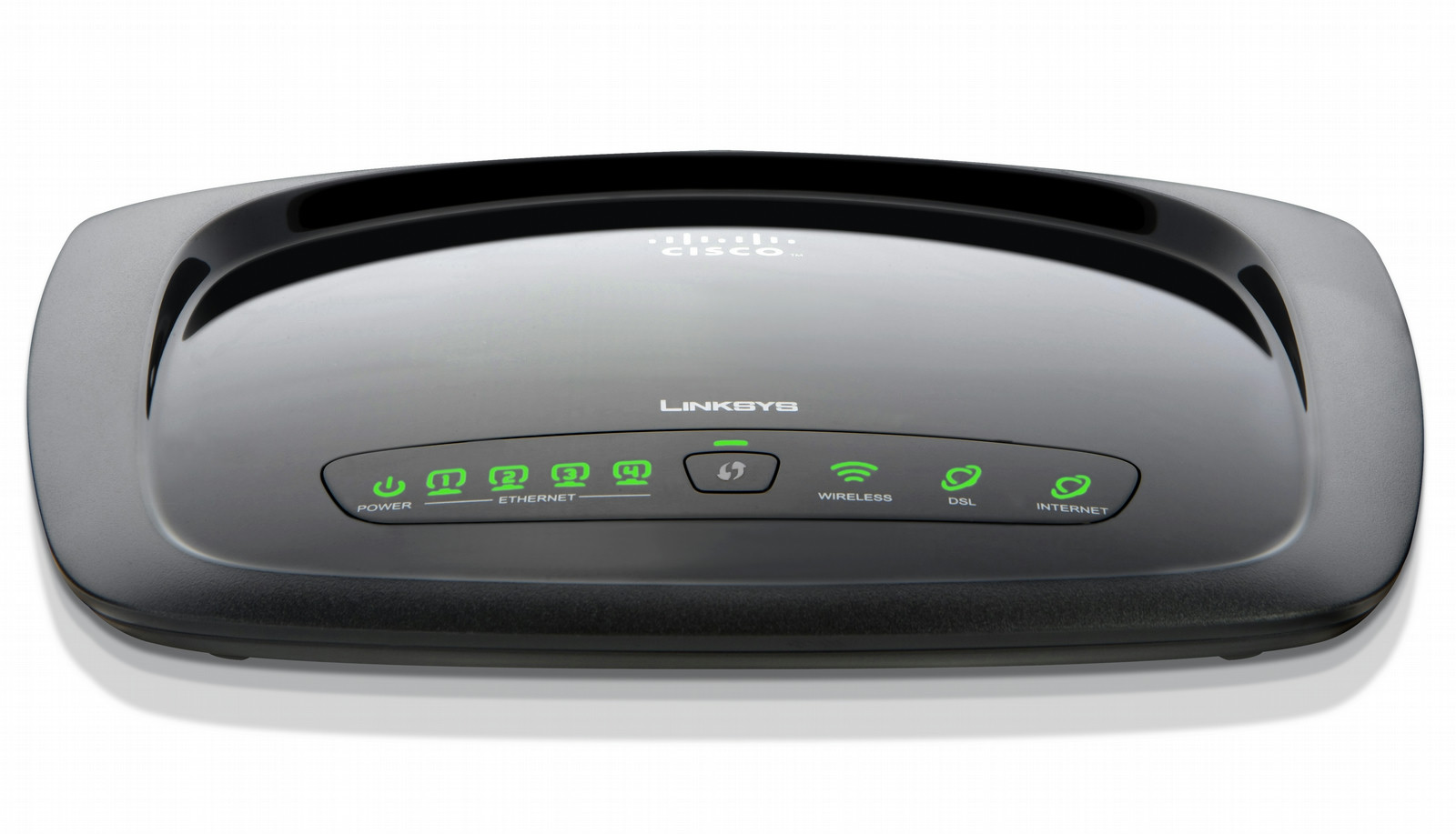

Wireless-N Home ADSL2+ Modem Router WAG120N
Enjoy fast wireless connectivity for your home or office. The Wireless-N Home ADSL2+ Modem Router has a built-in high-speed ADSL2+ Modem for a fast, "Always On" connection to the Internet. Wireless connections use Wireless-N technology for fast data transfers, and the four built-in 10/100 Ethernet ports supply high-speed connections to your wired devices.
Step up to the speed of Wireless-N
Easily create an around-the-home wireless network experience. Wireless-N technology allows your whole family to share one broadband Internet connection. Great for wireless printing and sharing files. Get best results when connecting to other Wireless-N devices, but also works great with Wireless-G and -B equipment.
Connection Versatility
Keep your digital files in one place, and share them from any computer on your network. Four built-in 10/100 Ethernet ports make it easy to connect additional wired computers, storage, printers, and other wired devices to your network.
Advanced Security
Advanced wireless security and SPI firewall protection helps safeguard your home network and computers from most Internet attacks.
