Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Flow control support |
Y |
Bandwidth
| Full duplex |
Y |
| Buffer size |
8 KB |
Performance
| Auto MDIX IEEE |
Y |
| Wake-on-LAN ready |
Y |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Jumbo Frames support |
Y |
| Transfer rate (Mbps) |
1000 Mbit/s |

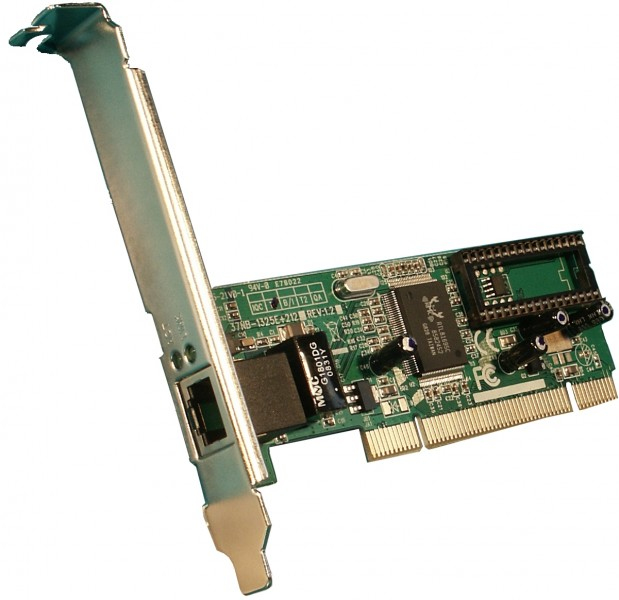

10/100/1000 Mbit/s Gigabit Ethernet Network Card, 1 x RJ-45, 32-bit PCI v2.2
<b>Features:</b>
- Compliant with PCI V2.2; 2.1; 2.0, 32-bit, 33/66-MHz
- Compliant with 10/100/1000 Mbps full/half-Duplex triple-speed operation.
- Fully compliant with IEEE 802.3z, IEEE 802.3, IEEE 802.3u and IEEE 802.3ab
- Support full Duplex flow control (IEEE 802.3x)
- Support VLAN tagging (IEEE 802.1q)
- IEEE 802.1p priority queuing for 4 classes of priority queues
- Support crossover detection & auto-correction
- Wake-On-LAN and remote wake-up support
- Support power-down / link-down power saving
- Support Jumbo frame up to 7K byte
- 8K bits for transmit buffer, 64K bits for receive buffer
