Data transmission
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
24 |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
| Full duplex |
Y |
Performance
| Packet buffer memory |
0.448 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

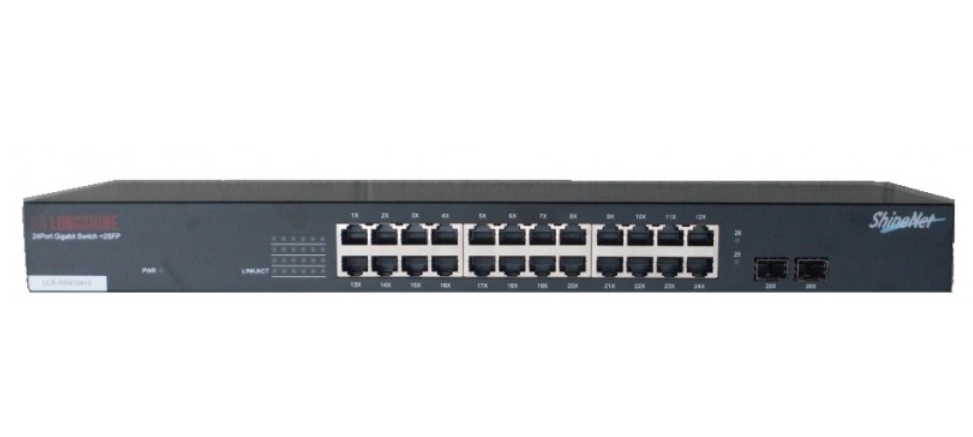

Fanless 24 Port Gigabit Switch & 2 SFP
Features:
- Complies with IEEE802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3z standards
- 24 * 10/100/1000 Mbps RJ-45 Nway ports
- 2 Mini-GBIC port for optional fiber optical communication
- Supports MDI/MDI-X auto crossover
- Supports NwWay protocol for speed and duplex mode autodetection
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
- Store-and-forward architecture filters fragment & CRC error packets
- Supports 9K bytes Jumbo frame
- Supports 16K bytes MAC address entries in whole system
- 448K bytes buffer memory
- Supports IEEE802.3az Energy Efficient Ethernet
- Internal power adapter
- FCC,VCCI,CE Class A. Meet RoHS
