Data transmission
| MAC address table |
16000 entries |
| Store-and-forward |
Y |
| Switching capacity |
48 Gbit/s |
Power
| Input voltage |
5 V |
| Input current |
8 A |
Design
| Rack mounting |
Y |
| Form factor |
1U |
Networking
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Performance
| Packet buffer memory |
0.448 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |

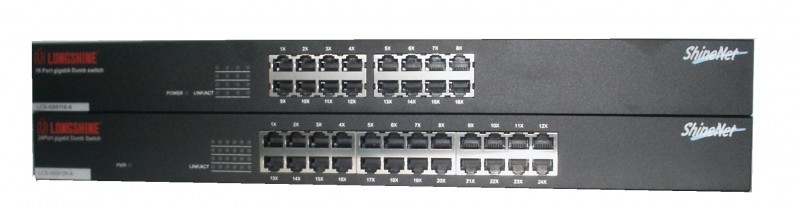

Fanless 24-port 10/100/1000 Mbit/s Workgroup Switch
Features:
- Complies with 10 BASE-T specifications of the IEEE802.3 standard
- Complies with 100BASE-TX specifications of the IEEE802.3u standard
- Complies with 1000BASE-T specifications of the IEEE802.3ab standard
- Supports back-pressure (half duplex) and flow control (IEEE 802.3x)
- Supports NWay protocol for speed (10/100/1000Mbps) and duplex mode(Half/Full) auto-detection
- Supports MDI/MDI-X auto crossover and polarity correction
- Store-and-forward architecture filters fragment & CRC error packets
- Supports 16K MAC address
- Supports 448K bytes buffer memory
