Security
| Firewall security |
NAT |
| MAC address filtering |
Y |
Networking
| Receiver sensitivity |
802.11b-91dBm\n802.11g-78dBm\n802.11n -69dBm |
Other features
| Non-operating relative humidity (non-condensing) |
10 - 90% |
| xDSL connection |
N |
| Interface |
RJ-45 |
| Outdoor range |
300m |
| Networking features |
Fast Ethernet |
| Power supply type |
DC |
| Frequency range |
2.4 GHz |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
IP, PPPoE, PPTP |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Full duplex |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Wireless LAN features
| WLAN data transfer rate (max) |
300 Mbit/s |
| Channels quantity |
13 channels |
Antenna
| Antenna gain level (max) |
2 dBi |
| Antennas quantity |
3 |
Additionally
| Indoors max range |
100m |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

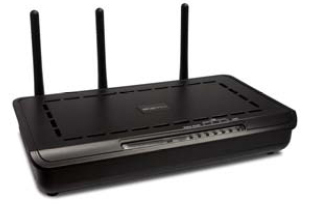

LCS-WR5-3214N, 802.11n/g/b, 802.3/802.3u, RJ-45, 100m/300m, black
LCS-WR5-3214N
Wireless Broadband Router
The IEEE802.11n Wireless Router is compatible with IEEE802.11n draft 2.0 standard, which supports data rate up to 300 Mbps in 2.4 GHz band, which is also compatible with IEEE 802.11b/g wireless devices. The router allows multiple users to share one broadband connection, as well as secures your private network. With its built-in 4-port switch and wireless AP, LAN users can share files, printers, or playing network games all at a blazing speed. To provide a secure wireless network, this router supports wireless data encryption with 64/128-bit WEP, WPA and WPA2. Network Address Translation (NAT) Firewall is also support to shield your communications and network from hackers and wireless eavesdroppers.
The LCS-8131N IEEE 802.11n Draft 2.0 Wireless USB adapter provides users to launch IEEE 802.11n Draft 2.0 wireless network at 300 Mbps in the 2.4GHz band, which is also compatible with IEEE 802.11b/g wireless devices at 11/54 Mbps. You can configure this adapter with ad-hoc mode to connect to other 2.4GHz wireless computers, or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet. This adapter includes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.
- Compatible with IEEE 802.11n draft 2.0, 802.11b/g wireless standards.
- Provides three 802.11n/b/g wireless Reversed fixed antennas (Standard 2dB)
- High speed transfer data rate up to 300Mbps
- Supports 2.4 GHz frequency band, MIMO 2T3R.
- Supports wireless data encryption with 64/128-bit WEP, WPA and WPA2
- Supports authentication for wireless connectivity based on ESSID
- Supports multiple BSSID
- Provides MAC access control and hidden SSID function
- WDS supported with WEP, TKIP and AES encryption
- Supports NAT / IP sharing
- Supports WAN connection type-Static IP, DHCP client, PPPoE and PPTP
- Firewall; Virtual DMZ; DNS relay; UPnP
- Provides DHCP server
- Supports DDNS (DynDNS, TZO)
- Supports firmware upgrade function via Web
- Supports system log
- Compliant with FCC Part 15.247 for US, ETS 300 328 for Europe
- Certifications: FCC Class B, CE Mark, VCCI Class B
