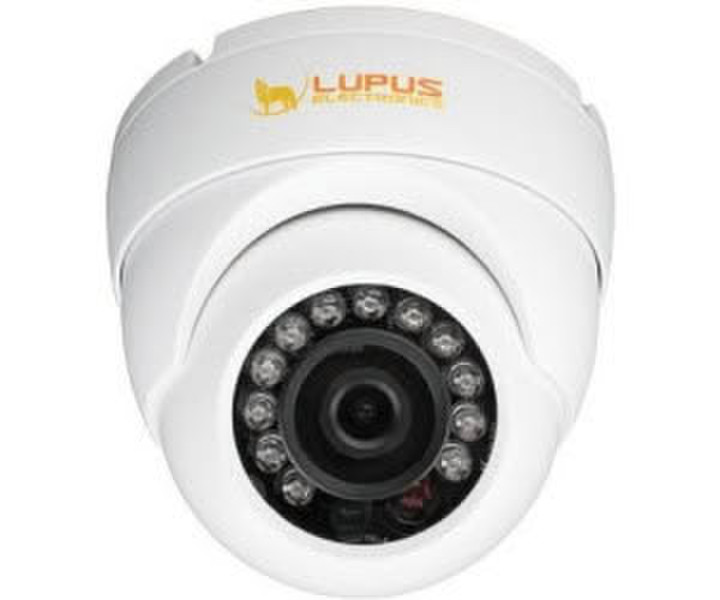

Lupus Electronics GEODOME LE 337HD (13300)

Camera types: Dome Camera, Infrared Camera
Series: Lupus GEODOME

Equipment
Functions: IR-Cut Filter
Video function: with night vision function
Number of cameras: 1
Connections: Video Out, 5.5 mm Coaxial
Power supply: Network operation

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting
Protection class: IP20
Areas of application: inside, outside
Outdoor functions: splash-proof, dust-tight, dust-protected, weather-resistant
Temperature range: -30 to 60 °C
Weight: 350 g
Dimensions (W x H x D): 93 x 75 mm

Network
Wireless range (outdoor): 500 m

Objective
Objective: Vvario lens
Objective focal length: 3,6 mm
Objective properties: fixed focal length
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,01 Lux
Aperture: 1,2

Video & Image
IR range: 500 m
Number of infrared LEDs: 12
Resolution: 1.280 x 720 Pixel
Images per sec.: 50
horizontal viewing angle: 70 °
vertical field of view: 70 °
Sensor type: 1/3" CMOS
Pixel sensor: 1,4 Megapixel
Image enhancements: automatic gain control (AGC), automatic white balance (AWB), digital noise reduction (3D-DNR), backlight compensation (BLC)
Video formats: AVC
Video recordings: Color, black and white, HD
Photo resolution: 0,9 Megapixel

Further properties
Scope of delivery: 12 V power supply, operating manual, mounting materials
Operating voltage: 12 V
suitable for: Darkness
additional image resolution: 1305 x 1049 Pixel
