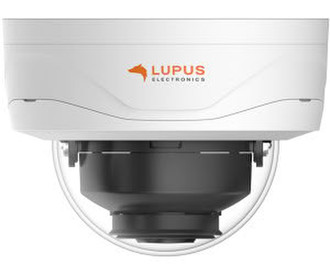

Lupus Electronics LE224

Camera types: IP camera, dome camera, infrared camera

Equipment
Functions: vandalism-proof, IR-Cut filter
Video function: with night vision function
Number of cameras: 1
supported memory cards: microSD
Connections: RJ-45 PoE
Power supply: PoE (Power over Ethernet)

Housing
Housing color: white
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection types: IP67, IK10
Areas of application: inside, outside
Outdoor function: weatherproof
Temperature range: -30 to 60 °C
Weight: 1.100 g
Dimensions (W x H x D): 122 x 88,9 mm

Smart Home
Smart Home: with app control

Network
Interfaces: LAN, 802.3af (PoE), RJ45
App Support: yes
App Features: Zoom, Live View
App available for: Android, Apple iOS
LAN standard: Ethernet 10/100
System requirements Operating system: Android, Apple iOS 7.0 or higher

Objective
Objective focal length: 3,7 - 11 mm
Objective properties: variable focal length
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,09 Lux
Aperture: 1,9

Video & Image
IR range: 30 m
Resolution: 3.840 x 2.160 Pixel
Images per sec.: 25
horizontal viewing angle: 112 °
vertical field of view: 60 °
Sensor type: 1/1,8" Progressive Scan CMOS
optical zoom: 3-fold
Pixel sensor: 8 Megapixel
Image enhancements: Wide Dynamic Range (WDR), automatic white balance (AWB), digital noise reduction (3D-DNR), backlight compensation (BLC), automatic gain control (AGC)
Video formats: H.265
Video recordings: 4K, color

Further properties
Scope of delivery: Operating instructions, mounting material
suitable for: Darkness
