Power
Output current |
1000 mA |
Input voltage |
5 V |
Input current |
1 A |
Wireless Charging Receiver For Samsung Galaxy S4, 39x56x0.6mm, 8g

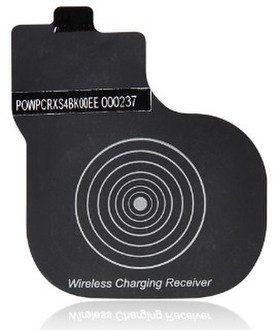

<b>RXS4 Samsung S4 Wireless Receiver</b>
The wireless receiver is a simple peace of technology that allows energy transfer between a transmitter (wireless charging pad) and receiver (smartphone device with integrated or attached wireless receiver ) with use of induction coils.
<b>About the LUXA2 Wireless Receiver</b>
The wireless receiver is a simple peace of technology that allows energy transfer between a transmitter (wireless charging pad) and receiver (smartphone device with integrated or attached wireless receiver ) with use of induction coils.
The metal contact point is designed for attaching onto the wireless charging contact of your Samsung device, whilst the sticker is an adhesive strip designed to stick onto the back of the battery pack.
<b>Step by Step Installation Guide</b>
- Step 1: Open the back cover of your Samsung device, thus exposing the battery.
- Step 2: Take out the wireless receiver from the box and remove the adhesive strip from the wireless receiver.
- Step 3: Align the metal contact point of the wireless receiver with the wireless contact point of your Samsung device.
- Step 4: Firmly press the wireless receiver onto the battery pack making sure that the metal contact points of both are touching.

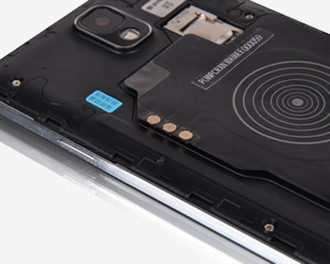

- Step 5: The completed installation of the wireless receiver should now look like this.
- Step 6: Simply put back on the back cover of your device and you’re ready to go.

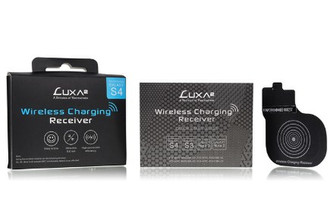

<b>What’s in the Box?</b>
A detailed user manual is included to provide crisp clear and simple instructions on how to install the LUXA2 wireless receiver with ease.
A carefully packaged wireless receiver for Samsung S3/4 or Note 2/3 is provided in a sturdy box with plastic packaging for maximum protection.
