Other features
| Link/Act LED |
Y |
| Ports quantity |
2 |
Protocols
| Supported network protocols |
IP, TCP, UDP |
Additionally
| Transfer rate (Mbps) |
1000 Mbit/s |
| Jumbo Frames support |
Y |
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

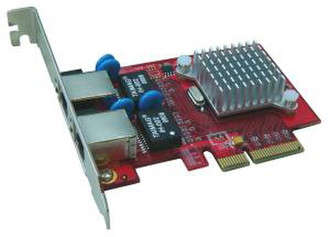

Dual GigaLAN 1000BASE-T Ethernet Low Profile PCIe x4 Network Server Adapter
Add Dual ports High-Speed 10 /100 /1000 Mbps BASE-T Ethernet Gigabit LAN to your Server
The adapter provides two RJ-45 Ports fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet) networking of transfer rate up to 1000 Mbps.
FEATURES
- RSS Hash Calculation and QoS (IEEE 802.1p) support for client and server application
- Fully compliant with IEEE 802.3 (10Base-T Ethernet), IEEE 802.3u (100Base-TX Fast Ethernet), IEEE 802.3z (1000Base-T Gigabit Ethernet)
- Compliant with PCI Express Specification, revision 1.0a
- 4-lane 10Gbps PCI Express host interface
- Low Profile PCI Form Factor
- Includes an additional Low profile PCI Bracket
- RJ-45 Port offer high speed transmission over CAT 5 UTP cable
- 2 LEDs per port to indicate for various network activities (1000 and LNK/ACT)
- Configurable 96 KB deep buffer for each link
- Jumbo Frame Buffer 9014 bytes
- Automatic MDI / MDIX Crossover at all speeds
- IP, TCP, UDP Checksum Offload and TCP segmentation offload / large-send support
- Supports Full Duplex flow control (IEEE 802.3x)
- Supports IEEE 802.1Q VLAN insertion and removal
- Descriptor Bursting and caching
- Interrupt Moderation
- Wake On Lane Power Management support
- SMBus V2.0 compliant
- Supports Windows 32bit/64bit Win7, Vista, XP, 2000, 2003, 2008, Linux x86 kernel 2.4, 2.6, FreeBSD x86 5.3, 5.4, 6.0
- Fully RoHS compliant
- Chipset: Marvell 88E8062
