Power
| Input voltage |
100 - 240 V |
| Autonomy mode |
Y |
| Battery voltage |
4.8 V |
Technical details
| Motion detection |
Wireless Wide-Angle PIR Motion Sensor (SM-80) |
| Remote control type |
Wireless Remote Controller (SM-88X) |
Packaging content
| Motion sensor technology |
Infrared sensor |
| Number of door/window sensors |
3 pc(s) |
| Number of motion sensors |
2 pc(s) |
| Number of remote controls |
2 pc(s) |
Performance
| Number of telephone numbers supported (max) |
5 |
| Operating frequency |
430 - 433 MHz |
| Number of simultaneously connected devices (max) |
60 |
| Maximum outdoor range |
90 m |
| Alarm decibels |
100 dB |
Design
| Control type |
Buttons |
| Display type |
LED |
D.I.Y. Wireless Home Alarm Deluxe System kit, 430-433MHz, 90m, PIR, max. 60 wirelees sensors
The SecurityMan
Air-Alarm-DL

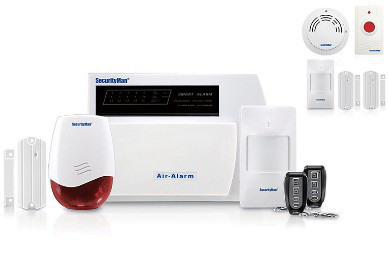

alarm system is a state-of-the-art wireless alarm system kit for homes and businesses. It includes Air-Alarm basic kit plus additional items of two door/window sensors SM-87B, one PIR motion sensor SM-80, one smoke sensor SM-93, and one panic button SM-89.
The SecurityMan Air-Alarm-DL home alarm system is user-friendly and easy to use for protecting homes/ businesses at a minimum cost of investment. Do-It-Your-Self installation and monitoring alarm system without monthly fees is a key benefit for users. The system will alert by phone calls to owner through a series of enlisted phone numbers.
The owner can then dial into the host to armed or disarmed using the phone’s numeric keypad. The Securityman Air-Alarm-DL alarm security system can be upgraded by adding up to 60 wireless sensors, sirens, and up to 8 remote controllers.
Features:
- Easy-to-use and cost-effective D.I.Y. (do-it-yourself) wireless intruder alarm system kit.
- Supports up to 60 wireless sensors (15 wireless defense zones and 4 wireless sensors per zone).
- Transmit at 430-433MHz frequency band, wireless transmitting distance up to 300 feet (remote controller, smoke sensor, & siren) and up to 450 feet (magnetic door/window sensor & PIR motion sensor).
- Supports up to 5 phone numbers for auto alarm call and 1 management center protocol(CID).
- Armed/disarmed by remote controller, phone call, or host’s keypad.
- Easy “one-key” armed/disarmed operation.
- Programmable silent alarm or audible alarm.
- Recordable alarm voice message (up to 9 seconds record time).
- Telephone line disconnection alarm sound every 5 seconds.
- Smart 3 defense lines configuration-1st defense line is the perimeter, 2nd defense line for in-room, & 24-hour defense line).
- Internal rechargeable backup battery in alarm host last up to 8 hours.
- Battery (alkaline) included for remote controllers, wireless door sensor, and wireless motion sensor last up to 2 years.
- Programmable password.
- Ademco CID compatible protocol.
