Management features
Multicast support |
Y |
Quality of Service (QoS) support |
Y |
Web-based management |
Y |
Data transmission
MAC address table |
8000 entries |
Switching capacity |
20 Gbit/s |
Security
IP-MAC-Port binding |
Y |
Access Control List (ACL) |
Y |
Networking
Port mirroring |
Y |
Broadcast storm control |
Y |
VLAN support |
Y |
IGMP snooping |
Y |
Auto MDI/MDI-X |
Y |
Rate limiting |
Y |
Link aggregation |
Y |
Spanning tree protocol |
Y |
Cable length detection |
Y |
Port-based VLAN |
Y |
Protocol-based VLAN |
Y |
Full duplex |
Y |
Flow control support |
Y |
Cable types supported |
Cat5, Cat5e |
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity |
8 |
DC-in jack |
Y |
Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Power over Ethernet (PoE)
Power over Ethernet (PoE) |
N |

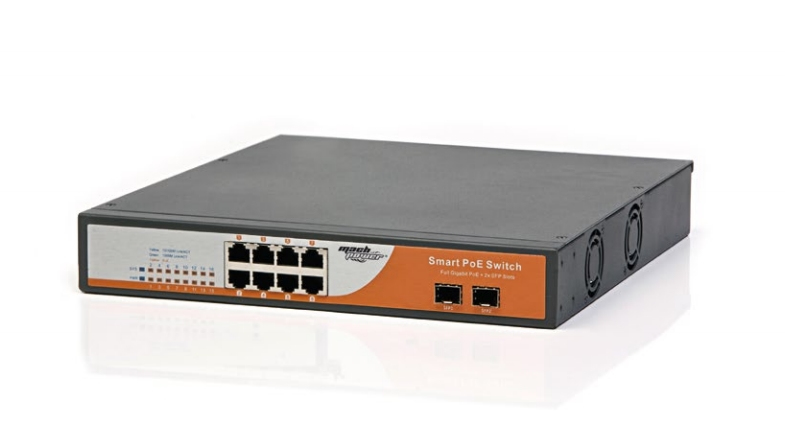

8x 10/100/1000M PoE, 2x Gigabit SFP, 802.3af/at, 150W, 20Gbp/s, IPv6, 2kg
PoE Switch are Full gigabit , managed , 8-port Gigabit high power (IEEE 802.3at) PoE Switches, utilizing a compact factor which can be mounted in a 19-inch rack with rack-mounting kits or placed on desktop. With data and power supported by one unit, the SW-MG8P2F-002 shall reduce cables and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. Auto PoE detection and Plug and play installation.
