WAN connection
| DSL WAN |
N |
| 3G/4G USB modem compatibility |
N |
| Ethernet WAN |
Y |
| SIM card slot |
N |
Networking
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b) |
20 dBmW |
| Receiver sensitivity |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
| Port forwarding |
Y |
Security
| Firewall |
Y |
| VPN support |
PPTP, L2TP, IPSec (ESP Head) |
| Firewall security |
DoS, SPI Firewall, IP Address Filter/MAC Address Filter/Domain Filter |
Management features
| WPS push button |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Universal Plug and Play (UPnP) |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (third band) |
11 Mbit/s |
| WLAN data transfer rate (second band) |
54 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi band |
Single-band (2.4 GHz) |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Full duplex |
Y |
| Auto MDI/MDI-X |
Y |
Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| Supported network protocols |
Dynamic IP/Static IP/PPPoE/PPTP/L2TP/BigPond |
| DMZ support |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |

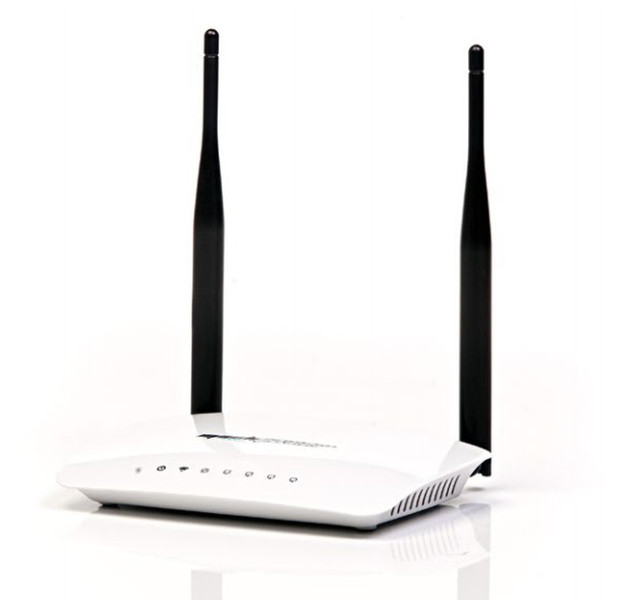

2.4-2.4835GHz, 4 x 10/100Mbps LAN PORTS 1 x 10/100Mbps WAN, 2x5dBi
Ideal for bandwidth consuming or interruption sensitive applications like video streaming, online gaming, Easily setup a WPA encrypted secure connection at a push of the WPS button, WDS wireless bridge provides seamless bridging to expand your wireless network, QoS function assures and multimedia streaming, Backward compatible with 802.11b/g products, Offers Auto-mail function for system log, convenient for managing the router.
