Design
| Radiator material |
Aluminium |
Weight & dimensions
| Radiator width |
152 mm |
| Fan diameter |
120 mm |
| Fan thickness |
25 mm |
| Radiator depth |
120 mm |
| Radiator height |
27 mm |
Technical details
| Number of fans |
1 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3+, Socket AM2+, LGA 1151 (Socket H4), Socket FM2+ |
| Fan speed (max) |
2200 RPM |
| Fan speed (min) |
200 RPM |
| Noise level |
25 dB |
LGA 2011, 1366, 1155, 1150, 775, AM3(+), AM2(+), FM1, FM2(+), 25 dBA, 600-2200 RPM
Features:

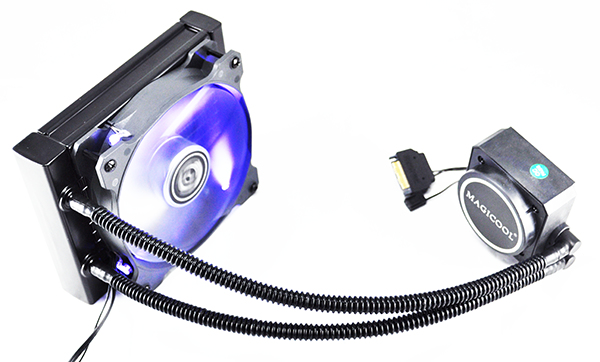

pre-filled and maintenance-free liquid cooling kit
pump integrated in CPU block, with SATA power and monitoring
easy to install, compatible to almost all current CPUs LGA 2011, 1366, 1155, 1150, 775 und AM3(+), AM2(+), FM1, FM2(+) by universal mounting kit
extra durable anti kink FEP tubing with ultra low vapor diffusion
Technical Specifications:
Copper base with micro channel
Pump DC 12V SATA powered
pump height 2,4 m
pump speed 100 L/Hr
dimension: 62x62x36 mm
pump noise level < 25 dBA
Radiator made of aluminum
Radiator dimension: 152 x 120 x 27 mm
Fan dimension: 120 x 120 x 25 mm
Fan speed: PWM 600-2200 RPM
