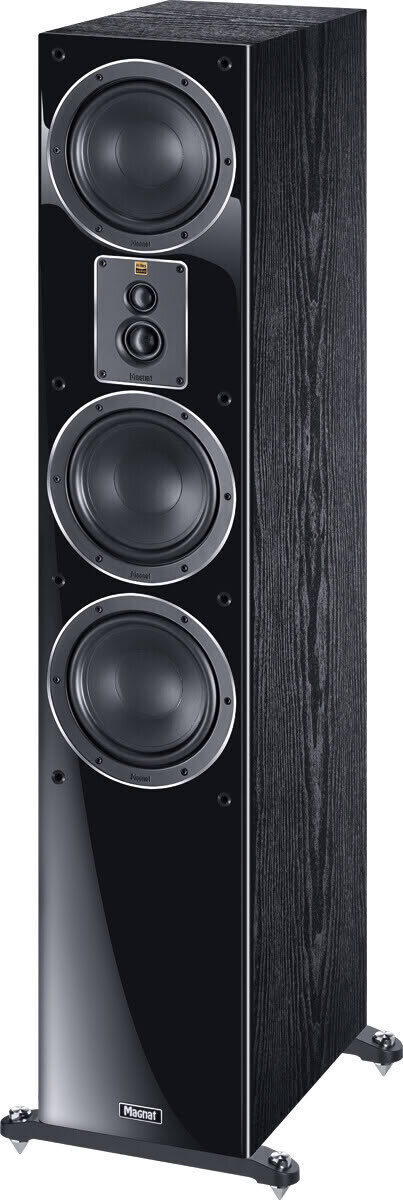

Magnat Signature 507 schwarz

Product type: Floor-standing speaker
Series: Magnat Signature, Magnat Signature 500

Operation
Principle: passive

Equipment
Sound function: Hi-Res Audio
Special feature: Rubber feet
Ccontrol property: Volume

Performance
Speaker System: 2.0 Stereo
Music power (PMPO): 350 Watt
Sensitivity: 92 dB/mW
recommended amplifier power: >30 Watts
Nominal load: 200 Watt
System: 4-Way
Transition frequencies: 400 Hz, 2,800 Hz, 17,500 Hz
Frequency response: 23 - 53.000 Hz
Impedances: 4 Ohm, 4 - 8 Ohm, 6 Ohm, 8 Ohm

Connections
Speaker connections: Screw terminals, Bi-Wiring, Bi-Amping

Design
Housing color: black
Speaker cover color: black
Color of speaker diaphragm: black
Housing material: MDF
Surface: high gloss
Front color: black
Housing surface: Veneer
Color: black
Housing design: Ash

Construction method
Housing characteristics: Bass reflex, removable speaker cover
Number of tweeters: 2
High-frequency chassis: 20 mm
Number of midrange drivers: 1
Midrange chassis: 170 mm
Midrange driver material: Paper
Number of woofers: 2
Bass chassis: 170 mm
Material woofer: Paper
Number of bass reflex ports: 2
Position of bass reflex port: Back side

Dimensions and scope of delivery
Scope of delivery: Rubber feet, base, spikes, speaker cover, operating manual

Further properties
Areas of application: Living room, home cinema
Configurations: vertical, ground, spikes prepared, base
