Networking
| Media access protocol |
CSMA/CA, CSMA/CD |
| Receiver sensitivity |
5.0 GHz:\n\n11a (54 Mbps): ‐69 dBm (±2 dBm)\n11n (20 MHz, MCS7): ‐68 dBm (±2 dBm)\n11n (40 MHz, MCS7): ‐64 dBm (±2 dBm)\n11ac (80 MHz, MCS9): -55 dBm (±2 dBm)\n\n2.4 GHz:\n\n11b (11 Mbps): -83 dBm (±2 dBm)\n11g (54 Mbps): -69 dBm (±2 dBm)\n11n (20 MHz): -67 dBm (±2 dBm)\n11n (40 MHz): -64 dBm (±2 dBm) |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Auto MDI/MDI-X |
Y |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Security
| VPN support |
PPTP, IPSec, L2TP |
| Firewall |
Y |
| URL filtering |
Y |
| Filtering |
Y |
| MAC address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
| WLAN data transfer rate (max) |
733 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
433 Mbit/s |
| Wi-Fi standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Modulation |
16-QAM, 64-QAM, DBPSK, DQPSK, DSSS, OFDM, QPSK |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Antenna
| Antenna type |
External |
| Antennas quantity |
2 |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |

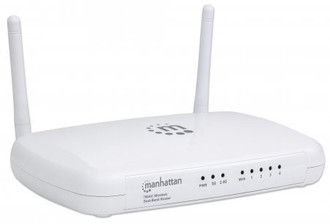

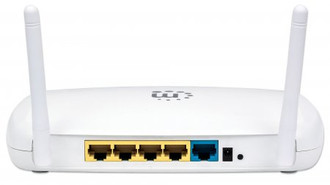

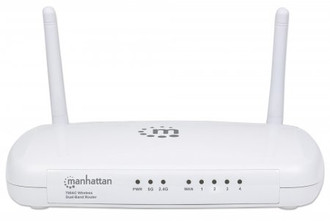

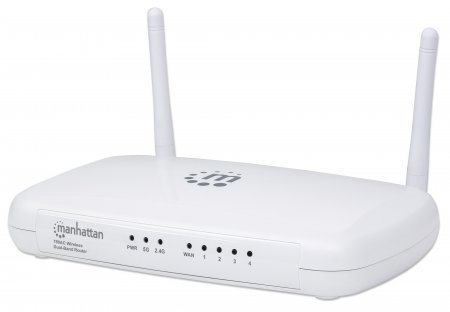

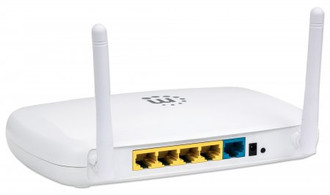

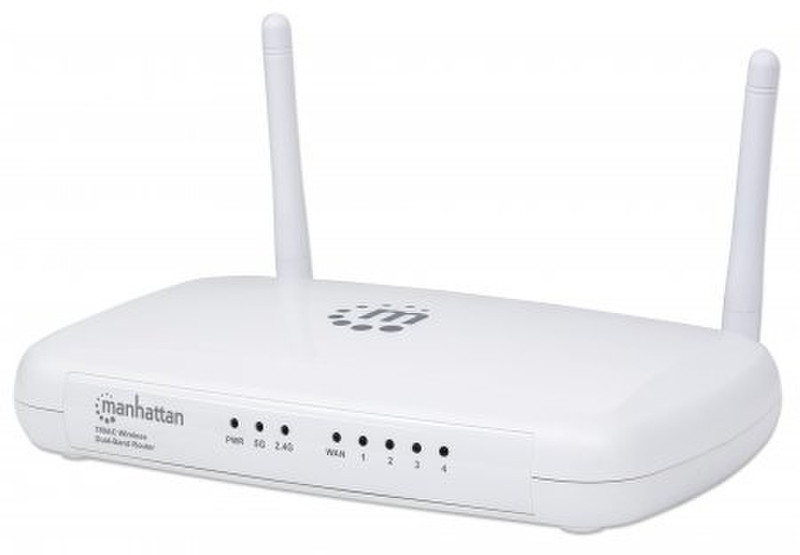

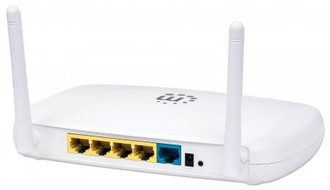

AC750 Wireless Dual-Band Router, 300 Mb/s, 4 x RJ-45 LAN
Wireless AC750 Dual-Band Router – The ultimate in wireless performance.
Thanks to the latest in wireless networking technology — Wireless AC — the Manhattan AC750 Wireless Dual-Band Router offers you a totally unparalleled level of speed, coverage, reliability and value. Designed to be easy to set up and maintain, the Wireless AC750 Dual-Band Router delivers blazing-fast data speeds of up to 300 Mbps on the 2.4 GHz band and 433 Mbps on the 5 GHz band, as well as enough range to cover an entire single-family home or medium-sized office.
