Matrox Monarch HD

Monarch HD, HDMI, Audio, 2x USB 2.0, SD card Slot, 300 g <b>Professional video streaming and recording appliance</b>

Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers who need to simultaneously stream a live event and record the master quality version for post-event editing. By separating the task of recording from streaming in a single integrated unit, Matrox Monarch HD ensures that the Content Delivery Networks (CDNs) are focused on delivering quality video to your audience while you control the quality of the archive.

From any HDMI input source such as a camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser.

<b>Record master quality video while streaming</b>

If an event is worth streaming, it is worth recording at the highest possible quality. The better the recording quality, the more value it offers a post event produced asset. These assets can be made available to your audience as fast turnaround VOD files or as fully post produced highlight reels.

Matrox Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other. A typical setting will let a user record a master quality file at 25 Mbps while simultaneously streaming at a bitrate of 5 Mbps. As a dedicated streaming or recording appliance, Matrox Monarch HD can stream at bitrates up to 20 Mbps or record at bitrates as high as 30 Mpbs.

Matrox Monarch HD injects the highest quality video into every bit regardless of input source or target bitrate. Combining the power of the built-in H.264 encoder with Matrox’s high quality deinterlacing and scaling engines guarantees stunning results.

<b>Robust and practical design</b>

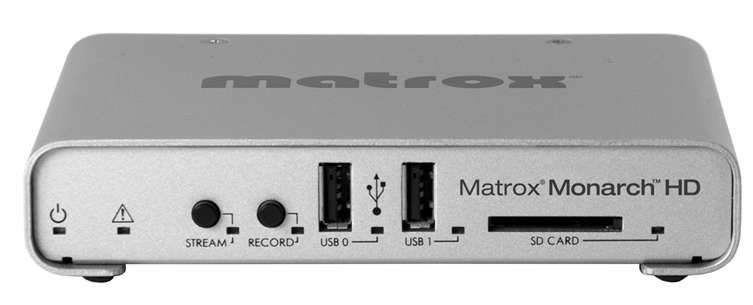

Powerful and robust, Matrox Monarch HD offers simple, one touch stream and record pushbuttons, low power consumption, a locking power connector, and a fanless design. Matrox Monarch HD's HDMI output makes it easy to monitor what you are streaming and recording, regardless of whether the signal received from a camera, a switcher, a signal convertor, or a computer. All eight channels of embedded audio can be passed from the HDMI input to HDMI output ports. Two channels of analog audio input with loopout are also available via 1/8" stereo jacks. Its design allows Matrox Monarch HD to be just as easily located on a desktop as in a rack–up to three units can fit in a single 1RU tray. The storage and button controls are conveniently located on the front of the unit while the power and I/O ports are found at the back.

<b>Easily Reach your Audience</b>

Whether you’re providing live content to Adobe Flash or Wowza Media servers, to any of the popular CDNs, or directly to a computer or device found on a LAN, Matrox Monarch HD’s flexible video streaming protocols’ support is up to task. The Monarch HD is a certified “Works with Wowza” encoder allowing our users to benefit from enhanced integration with the Wowza streaming engine. As a certified encoder Wowza Manager can provide an XML file which contains the credentials required for the Monarch HD to easily connect to the Wowza Streaming engine. The Monarch HD also supports XML files generated for use with Flash Live Media Encoder. These files are often offered by CDNs to allow their customers to easily connect to their service. Both XML files are loaded into the Monarch HD using the Command Center, a web based UI. Finally, the Monarch HD can be configured to target only a handful on viewers using software based players such as VideoLAN’s VLC Player. This is particularly useful for remote viewing of content being recorded locally.

<b>Record to Anything</b>

Matrox Monarch HD lets you select from a variety of recording media types. Use an SD card when a compact portable solution is required or a USB drive for long form recording. Alternately, a system drive on a computer found on the network may prove extremely useful if multiple individuals need to access the footage.

The Monarch HD provides users the ability to create split files while recording. This is particularly useful when recording for extended periods of time. The user can enter a file length and Monarch HD will automatically split your recording into separate files, switching to a new file without losing a single frame. When loaded on an NLE timeline sequentially, they will playback seamlessly and can be exported as a single contiguous file.

Regardless of how or where you store the footage, the record controls can be executed without affecting the streaming operations. High quality files will be available to create video assets to complement the live stream well after the event is completed.

<b>Remote Command and Control</b>

A simple web page is all that is needed to harness the power of Matrox Monarch HD. You can control and configure the appliance using any device on your network that supports a standard web browsing application.

A single Matrox Monarch HD device can act as a master to multiple slave devices. From a single web page, you can simultaneously start the recording and/or streaming of up to four Matrox Monarch HD devices.

<b>Integrate with Crestron</b>

The Monarch HD Control API is an ideal way to integrate Monarch HD functionality into an existing classroom, boardroom or other space equipped with a Crestron control system. Monarch HD registered users are invited to download a sample SIMPL module written to run on Crestron 2-Series® and 3-Series® Room Media Controllers.
