Ports & interfaces
| Parallel ports quantity |
1 |
| DVI port |
N |
| CardBus PCMCIA slots quantity |
1 |
| CardBus PCMCIA slot type |
Type II |
| SmartCard slot |
N |
| Docking connector |
N |
| TV-out |
Y |
| TV out type |
S-Video |
| Modem (RJ-11) ports |
1 |
| Firewire (IEEE 1394) ports |
1 |
| Headphone outputs |
1 |
| S/PDIF out port |
N |
| Microphone in |
Y |
| VGA (D-Sub) ports quantity |
1 |
| DC-in jack |
Y |
Other features
| TV in port |
N |
| Modem speed |
56 Kbit/s |
| Infrared data port |
Y |
| Modem type |
V92 |
| Wake-on-LAN ready |
Y |
| Wake-on-Ring ready |
Y |
| Internal modem |
Y |
| Wireless technology |
Intel PRO/Wireless 802.11 b/g |
Processor
| Processor cache |
2 MB |
| Processor cache type |
L2 |
| Processor front side bus |
400 MHz |
| Processor upgrade |
Intel Pentium M Processor 755 |
| Processor frequency |
1.6 GHz |
Graphics
| Discrete graphics adapter model |
AMD Radeon 9700 |
| Maximum graphics adapter memory |
0.128 GB |
| Discrete graphics adapter |
Y |
Memory
| Internal memory type |
DDR-SDRAM |
| Maximum internal memory |
2 GB |
| Internal memory |
0.25 GB |
Storage
| Hard drive speed |
4200 RPM |
| Total storage capacity |
40 GB |
Networking
| Networking features |
Ethernet/Fast Ethernet/Gigabit |
Additionally
| Chipset |
Intel 855PM |
| Ethernet LAN (RJ-45) ports quantity |
1 |
Intel® Centrino™ Pentium M Processor 725, 38.1 cm (15.0 ") TFT SXGA+, 256 MB DDR, 40.0 GB, RADEON® 9700, AC´97 Audio, DVD/CD-RW, 56 k Modem/V.92, LAN 10/100/100 Mbit/s, 4-in-1 Card Reader, Intel® PRO/Wireless 802.11 b/g, Microsoft® Windows® XP Professional

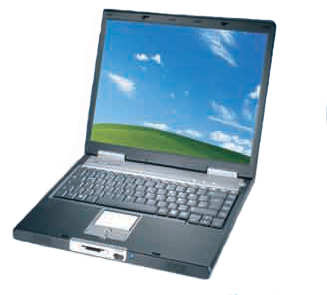

The PRO 8100 IS presents itself as the perfect high end notebook. Its high resolution SXGA+ display and top quality, high performance graphics card ATI MOBILITY™ RADEON® 9700 with 128 MB RAM provide sharp image and multimedia presentation that is rare in the notebook segment.
As a result, even professional multimedia users are extremely well equipped with the PRO 8100 IS. And its integrated Intel® Centrino™ Mobile Technology also provides unbeatable WLAN quality. The owners of the PRO 8100 IS also have additional mobile benefits through a high end LAN with transfer rates up to 1 GB, battery life of four hours and Intel® Enhanced Speed Step III Power Management. And it is also fitting that the high performance notebook with all its features weighs an extremely light 2.8 kg.
Such practical features as the multifunction bay and port replicator connection round off a notebook whose flexibility
The ultimate in mobile computingand performance take it to the top of current mobile computing.
MAXDATA notebooks with Microsoft® Windows® XP Profes-sional for greater mobility and productivity in everyday business. The improved power management ensures longer mobile operating periods.
Highlights:
-Port replicator connection
-Media-bay slot
-Brilliant multimedia performance as a result of advanced technology
Application areas:
The MAXDATA PRO 8100 IS, with multimedia features that are practically perfect, is the ideal solution for the professional business user.
Upgrade options:
-Intel® Pentium® M Processor 745
-Intel® Pentium® M Processor 755
-512 MB DDR SDRAM
-1 GB DDR SDRAM
-60.0 GB hard disk, 5400 rpm
-80.0 GB hard disk, 5400 rpm
-100.0 GB hard disk, 5400 rpm
-Dual DVD+/-RW drive
-Microsoft® Office 2003 Professional
