Performance
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.10 Yosemite, Mac OS X 10.9 Mavericks, Mac OS X 10.8 Mountain Lion, Mac OS X 10.7 Lion, Mac OS X 10.12 Sierra |
| Processor cores |
2 |
| Mac compatibility |
Y |
| Processor frequency |
900 GHz |
| Mobile operating systems supported |
iOS, Android |
| Operating frequency |
1x 433, 2x 868 MHz |
| Transmission range |
0 - 100 m |
Power
| Input current |
2.5 A |
| Input voltage |
5 V |
| Power consumption (max) |
2.5 W |
Ports & interfaces
| USB ports quantity |
2 |
| Wi-Fi |
N |
| USB version |
2.0 |
Additionally
| Internal RAM |
1 GB |
| Ethernet LAN connection |
Y |
900 MHz ARM + 84 MHz ARM, 1 GB RAM, 10/100 BaseT LAN, RF 433/868/ MHz, IR, 2x 3.5mm, 2x USB 2.0, AIO CREATOR NEO

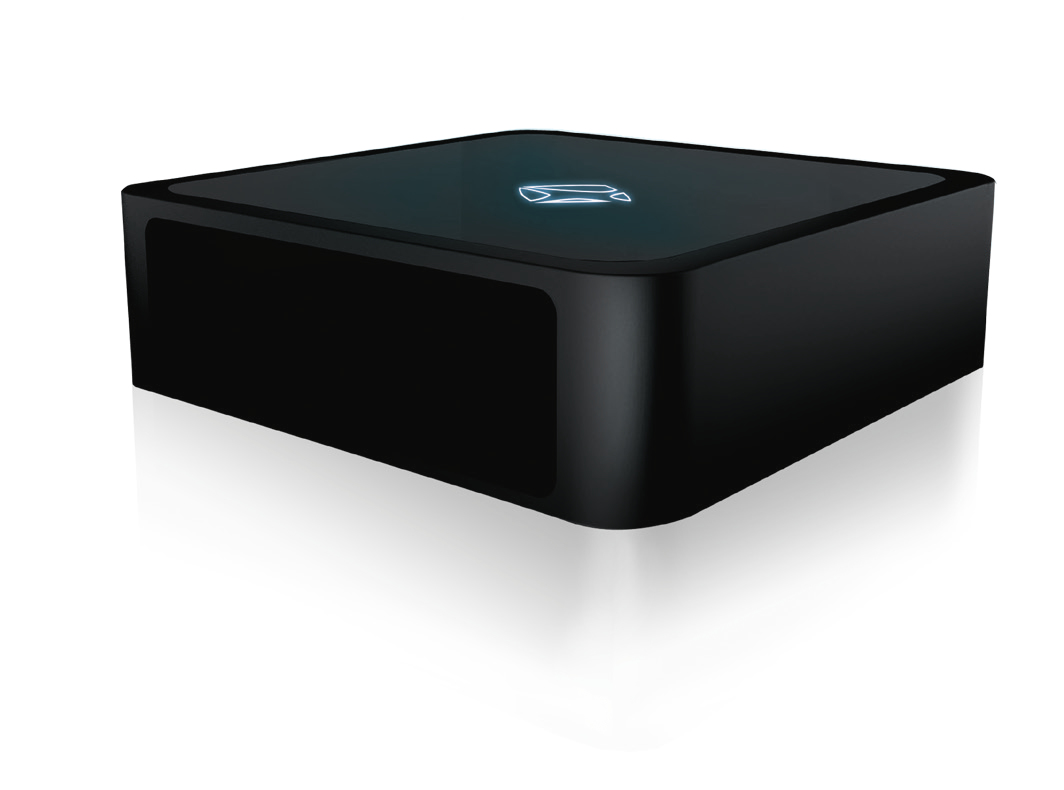

The mediola ® AIO GATEWAY V5+ is a small universal IoT-/Smart Home Gateway, which is equipped with a unique hybrid technology, that allows to control RF- or IR-devices via smartphones and tablets.
In combination with the Software AIO CREATOR NEO, the AIO GATEWAY V5+ connects all IR-controllable audio-/ video- devices and more than 850 RF-components of many different brands to seamlessly communicate together in an intelligent way (the supported devices list will be expanded constantly). So you are able to combine lighting, climate, shades, home entertainment, security and more on a single integrated platform and any device and system in the home can be fully automated and controlled remotely. Just select your favorite smartphone and tablet or PC/ Mac to access, control and mange your system from anywhere in the world. With mediola ® anyone can turn his home into a smart home/ smart office easily. Because the V5+ supports Homematic- as well as Homematic IP-Components, the gateway can be used as an alternative to a Homematic CCU. Additionally it receives status feedbacks to visualise operation modes and sensor events (from i.e. smoke-, lock- and motion detectors).
The V5+ contains RF-Transceivers with 433 MHz & 868 MHz, an additional 868 MHz Homematic IP-Transceiver, Infrared Transceivers and two USB connectors. The USB connectors allow to extend the supported devices range with additional wireless standards. Due to its high-performance processor and the embedded Linux OS the V5+ is prepared for future expansions.
To operate the V5+, control all its supported devices and combine them with a multitude of other brands in a scalable All-In-One Smart Home Solution, we provide our powerful Software AIO CREATOR NEO.
With NEO anyone can easily design his individual Smart Home App by using innovative features like the the integrated App designer with grafical Drag’n Drop editor, a macro editor to create one-touch-scenes and many more. Furthermore NEO is amazingly flexible and future-proof because its open and modular architecture allows to integrate a huge variety of control units and devices of other brands, not supported by the V5+, via optional NEO Plugins.
In addition to the already included NEO Plugin for mediola AIO GATEWAYS, we currently offer over 50 other NEO Plugins to enhance the NEO System with many famous brands and professional smart home systems like SONOS, Philips hue, Netatmo, Edimax, OSRAM LEDVANCE, Foscam, Magenta Smarthome, Mobotix, mydlink home, INSTAR, AVM Fritz!, Pioneer, ONKYO, Bose, Doorbird ...
To add some high-efficient automation features, the new NEO Automation Manager Plugin is available for NEO and V5+. It allows to create rules and conditions for simple and multi-level automations and works seamlessly across all incompatible platforms of different vendors / brands.
The supported devices range of the V5+ can be extended with wireless standards such as Z-Wave, ZigBee and EnOcean via USB adapters and NEO Plugins.
