Power
| Input voltage |
12 V |
| Power over Ethernet (PoE) |
Y |
Performance
| 5 GHz |
Y |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Modulation |
16-QAM, CCK, 64-QAM, 256-QAM, BPSK, QPSK |
| 2.4 GHz |
Y |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4 - 2.5 / 4.9 - 5.9 GHz |
| Spread spectrum method |
DSSS |
Antenna
| Antennas quantity |
6 |
| Detachable antenna(s) |
Y |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
6 dBi |
| Antenna type |
omnidirectional |
Design
| Internal |
N |
| Cable lock slot |
Kensington |
Ports & interfaces
| USB connector type |
USB Type-A |
Additionally
| Transfer rate (Mbps) |
1300 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |

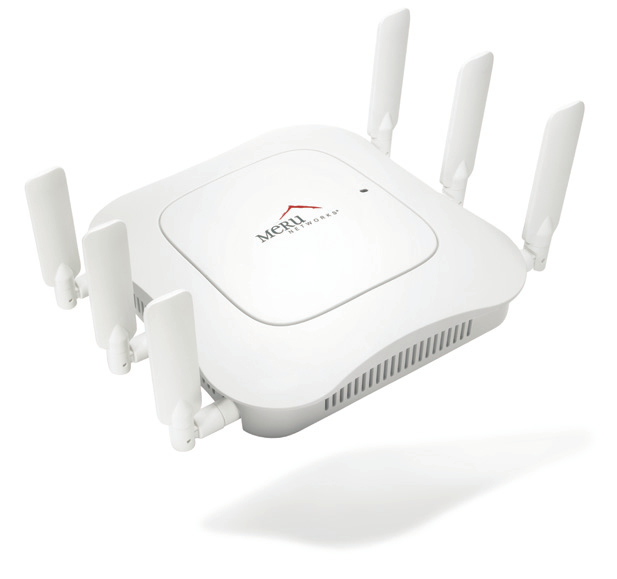

AP832E - Dual-radio, Three-stream 802.11ac Wireless Access Point, 6 external omnidirectional antennas
<b>High-performance wireless connectivity for high-density environments</b>
The AP832 is the industry’s first 802.11ac access point capable of supporting two concurrent 5 GHz 3x3:3ss radios, designed for high-density deployments in large offices, schools, universities, hospitals, hotels, and large retail stores. The AP832 supports an aggregate 2.6 Gbps data rate for the most demanding business applications like video and voice.
The AP832 access point allows administrators to prioritize applications to improve the user experience with Meru’s unique Context Aware Layers technology. For schools, this means Learning Management System applications can be assigned to one dedicated channel layer, while online classroom video feeds can be dedicated to another channel layer. For healthcare, life- critical applications such as patient monitoring can be dynamically assigned to one channel layer, doctor and nursing applications can be assigned to a second layer, and patient applications can be placed on a third channel layer.
The AP832 also provides unique roaming support because Meru enables the network (not the client) to control roams via our Air Traffic Control® technology, resulting in the industry’s lowest roaming latency figures–a true zero-handoff.
Additionally, Meru’s single-channel technology allows the AP832 to leverage the 802.11ac design for pervasive deployment of 80 MHz channels in real-world deployments, which effectively doubles the available data rate and dramatically increases throughput availability for Meru customers.
Like other Meru access points, the AP832 integrates seamlessly with our E(z)RF network management system, Identity Manager, and other application solutions to bring intelligent management and
resilient wireless services to your network.
