Antenna
| Detachable antenna(s) |
N |
| Antenna gain level (max) |
5 dBi |
| Antenna type |
omnidirectional |
| Integrated antenna |
Y |
| Antennas quantity |
4 |
Performance
| Quality of Service (QoS) support |
Y |
| Frequency band |
2.4 - 5 GHz |
| 5 GHz |
Y |
| Modulation |
16-QAM, CCK, 64-QAM, BPSK, QPSK |
| 2.4 GHz |
Y |
Power
| Power over Ethernet (PoE) |
Y |
| Input voltage |
5 V |
Ports & interfaces
| USB connector type |
USB Type-A |
| DC-in jack |
Y |
Design
| Cable lock slot |
Kensington |
| Internal |
N |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Transfer rate (Mbps) |
300 Mbit/s |
Dual-band, concurrent dual-radio 802.11a/b/g/n access point with integrated dual-band antennas
<b>General purpose, enterprise-class wireless access points</b>

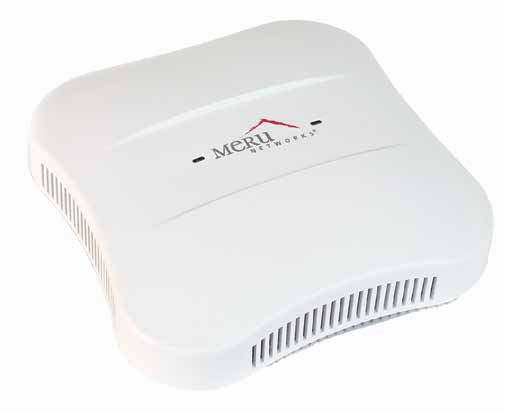

The AP1010 and AP1020 are dual-band, dual-stream 802.11a/b/g/n Wi-Fi access points based on Meru’s virtualized wireless LAN technology. The AP1010 and AP1020 deliver highly reliable and predictable wireless connectivity to support resource-intensive applications in moderate density environments. They are designed for general purpose use in a broad range of settings, including classrooms, dormitories, and branch offices.
The AP1010 features a single radio and operates on either the 2.4 GHz or 5 GHz band to deliver a maximum data rate of 300 Mbps. The AP1020 features dual radios and operates on the 2.4 GHz and 5 Ghz bands to deliver a maximum data rate of 300 Mbps per radio. Both access points offer a choice between internal and external antenna models.
