Technical details
| Nominal input power |
2800 W |
| No-load speed |
6300 RPM |
| Planning width (max) |
307 mm |
| Rebating depth range |
0 - 3 mm |
| Output power |
2200 W |

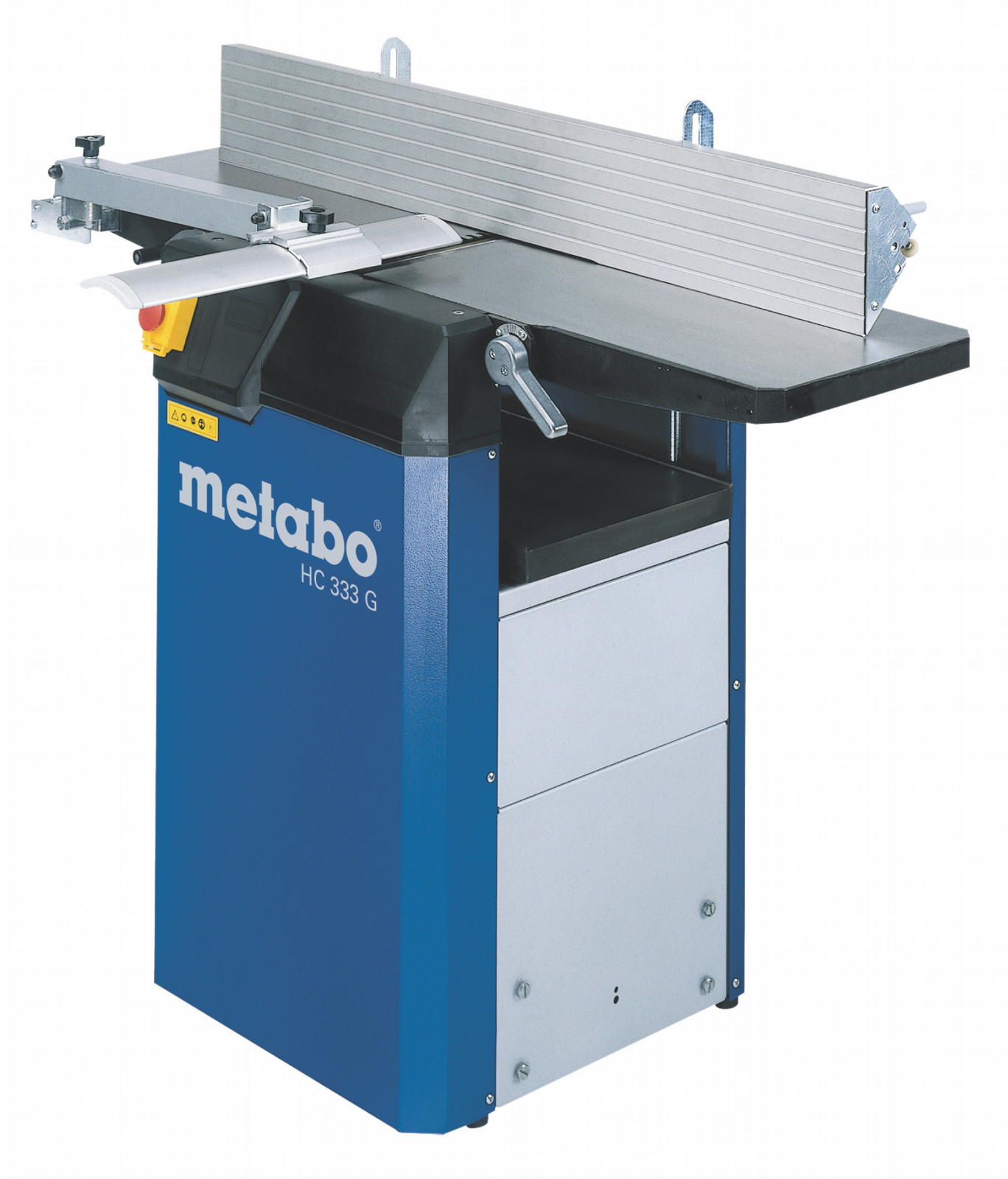

HC 333 G - 2.8 DNB, 2.8/2.2 kW, 6300 rpm, 140 kg
- Blade shaft with auto-setting HPHSS reversible planer blades; for the easy and quick change and reversing of the planer blades
- Optimum draw-in rollers, rubber-coated extraction rollers for best contact pressure
- Four chrome-plated self-cleaning transport columns, on 8 ball bearings
- High own weight for excellent stability
- Dressing plate made of solid, non-abrasive grey cast iron
- Robust machine housing for high stability and extensive vibration-free work
- Simple conversion from surface planer to bench thicknesser without tools
- Automatic, even workpiece feed
- Thickness table on four ball bearings
- Sturdy support for safe work at ideal operating height
- Slot boring machine can be attached to the side (accessory)
- For precise angular trimming of raw wood
- Thickness table made of solid, non-abrasive grey cast iron
- Convenient height adjustment with crank handle
- Planer blade with double edge
- Trimming fence, swivelling 90°-45°
- "Sawdust-tested" in compliance with TRGS 553 by FPH
- Extensive range of accessories
- For three phase current
