Weight & dimensions
| Height adjustment range |
355 - 850 mm |
Features
| Swivel angle range |
-1.5 - 46.5 ° |
| Uncertainty K |
3 dB |
| Blade thickness |
30 mm |
| Blade diameter |
216 mm |
| Saw blade included |
Y |
| No-load speed |
5000 RPM |
| Cutting depth (45º) |
43 mm |
| Cutting depth (90º) |
63 mm |
| Sound power level |
102 dB |
| Sound pressure level |
89 dB |
Power
| Input power |
1500 W |
| Output power |
900 W |

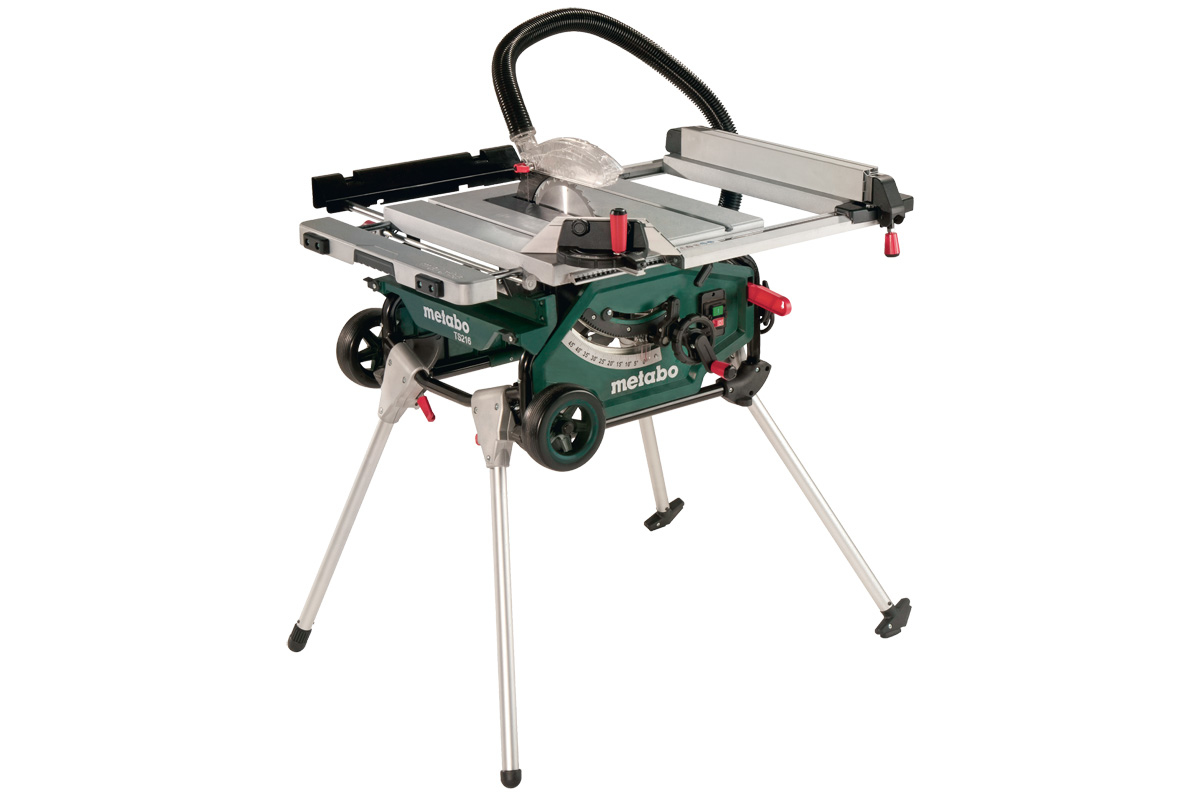

Table Circular Saw;With Base Frame/Trolley Function
- Lightest table saw with trolley function, also suitable for one-handed transport
- Integrated stand made from stable die-cast aluminium (patent filed); Unfolded in a matter of seconds, with secure positioning
- Very compact with folded stand for comfortable transport and space-saving storage
- Anti-twist tubular frame construction for highest demands on the building site and during installations
- Cables and all add-on components for transport can be stored at the casing
- Powerful motor with electronic overload protection
- Motor brake for quick stop of the saw blade in 3 seconds
- Restart protection: prevents unintentional startup after power cut
- Soft start for long service life of motor and drive
- Precise parallel guide with double clamping and quick fastening
- Precise saw blade inclination via gear guide
- Automatic resetting to 0 – 45 ° after undercuts
- Easy saw blade change with spindle lock
- Splitting wedge can be lowered without tools for hidden cuts and transport
- Precise, extendable table width extension for extra large working surfaces
- Second working height for working near ground level
- Dual port dust extraction for low dust working
