Ports & interfaces
| Serial ports quantity |
1 |
| FireWire 400 |
N |
| FireWire 800 |
N |
Other features
| Manageability features |
SMTP, SNMP, SES2 |
| Cache internal |
2048 MB |
| Host interface |
2 x SAS mini 4x |
| Expansion slots |
1 x mini SAS 4x (SFF-8088) |
Power
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
460 W |
Storage
| Total installed storage capacity |
16000 GB |
| Hot-swap drive bays |
Y |
| Storage drive capacity |
1000 GB |
Design
| Chassis type |
Rack (3U) |
| Number of fans |
4 fan(s) |
Additionally
| Fibre Channel |
N |
| Transfer rate (Mbps) |
300 Mbit/s |
16TB, 16 Bay, 300Mbps, SAS, SATA II, RAID 0/1/0+1/3/5/6/30/50/60/JBOD, Intel IOP341 64-bit, 512MB - 2GB DDR-II SDRAM, 3U, 48.26 cm (19 ")

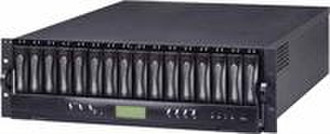

Genesis V 16TB 3U 16 Bay 3Gb/s, SAS to SATA II RAID
The MicroNet Genesis V, 3U-16 Bay SAS to SAS/SATA RAID subsystem offers unsurpassed data availability along with exceptional manageability. A firmware-embedded Web Browser-based RAID manager enables local or remote configuration and management. The Genesis V SMTP manager monitors all system events and notifications automatically and also allows remote monitoring via LAN with no SNMP agent required.
MicroNet’s Genesis V comes populated with SATA drives for low cost data storage and is upgradeable to SAS drives for more data-intensive applications. Supporting RAID levels 0, 1, 0+1, 3, 5, 6, 30, 50, 60 and JBOD, the Genesis V also supports online Array roaming, online RAID level/stripe size migration and online capacity expansion with simultaneous RAID level migration.
Features
- Transparent data protection for all operating systems
- RAID levels 0, 1, 0+1, 3, 5, 6, 30, 50, 60 and JBOD
- Online Array roaming
- Online RAID level/stripe size migration
- Online capacity expansion and RAID level migration simultaneously
- Online Volume Set Expansion
- Supports multiple array enclosures per host connection
- Supports greater than 2TB per volume set (64-bit LBA support)
- Supports 4K bytes/sector for Windows up to 16TB per volume set
- Supports up to 128 LUNs per RAID set
- Instant availability and background initialization
- Supports S.M.A.R.T. NCQ and OOB Staggered Spin-up capable drives
- Local audible event notification alarm
- Supports password protection and UPS connection
- Serial port interface for remote event notification
- Redundant flash image for high availability
- 3-year warranty
