Management features
| Multicast support |
Y |
| System event log |
Y |
| Traffic shaping |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8192 entries |
| Store-and-forward |
Y |
| Jumbo frames |
10240 |
Performance
| Processor frequency |
800 MHz |
| Firmware upgradeable |
Y |
| Built-in processor |
Y |
| Auto-negotiation |
Y |
Security
| Authentication |
MAC-based authentication |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Tagged VLAN |
Y |
| Spanning tree protocol |
Y |
| Port-based VLAN |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat5e |
| 10G support |
N |
| Full duplex |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet (PoE) voltage range |
48 - 54 V |
| Power over Ethernet plus (PoE+) ports quantity |
16 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Console port |
RS-232 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
26 |
| Compatible memory cards |
SD |
| Terminal block port |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-T, 10BASE-T |
| Combo SFP ports quantity |
8 |
Protocols
| Supported network protocols |
TFTP, FTP, SFTP, HTTP, HTTPS |
Design
| Form factor |
19U |
| Rack mounting |
Y |
48.26 cm (19 ") , L2+, 25x RJ-45, 1x RJ-45, 8x SFP, 1x USB, SD, 24-57 VDC

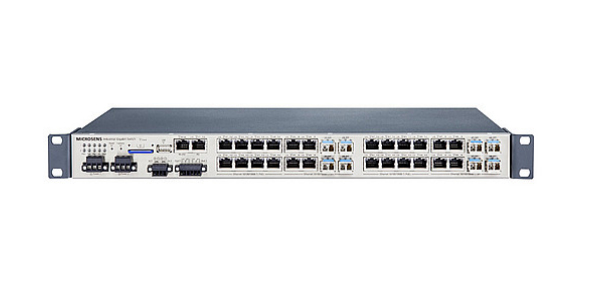

Besides the extensive industrial product portfolio for installation on DIN rails, MICROSENS offers a 25-port Gigabit Ethernet switch in 19" design. The Profi Line rack switch was developed for use in harsh industrial environments andsets new standards in reliability and performance.
The switch offers a total of 25 Gigabit Ethernet ports of which eight can be expanded to fiber optic connections as combo ports with SFP modules. A total of 16 copper ports offer PoE/PoE+ functionality with which the terminal devices connected can be supplied with electricity economically and without additionalcabling work.
The fanless switch is operated with a voltage in the range 24..57 VDC and is used in the extended operating temperature range of -40..+75°C. With its compact package size of 1 U, it also has two alarm inputs and outputs, for example for cabinet monitoring or integrating a sensor/actuator.
The Profi Line rack switch was designed for the greatest availability and shortest recovery times. Industrial ring structures can be established both via SFP ports or with copper connections. In the event of failure, a special mechanism detects a fault on a network node or interruption of the line and ensures automatic reconfiguration of the network within milliseconds.
The switch operating system, firmware and configuration data are saved on a SD card. If a switch ever needs to be replaced, the existing SD card is simply inserted in the new device which automatically accepts all the settings.
