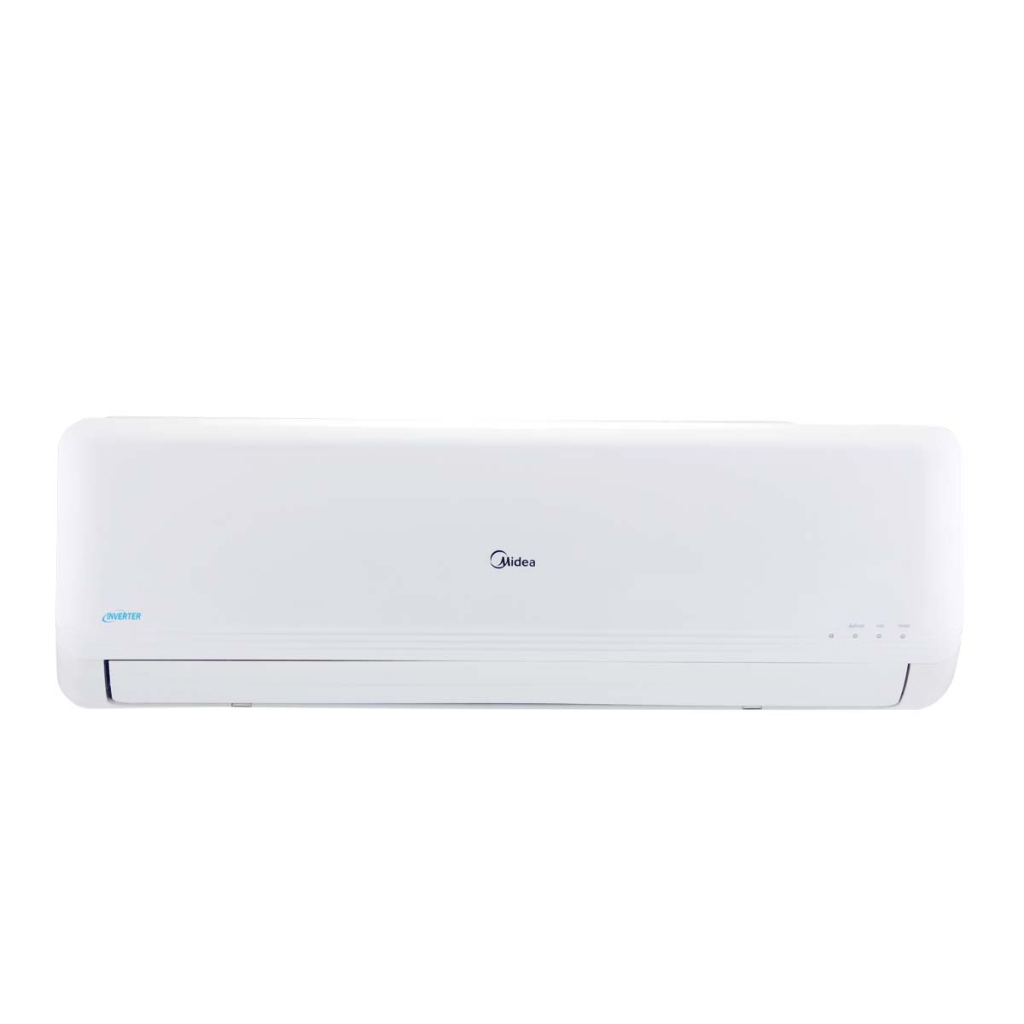

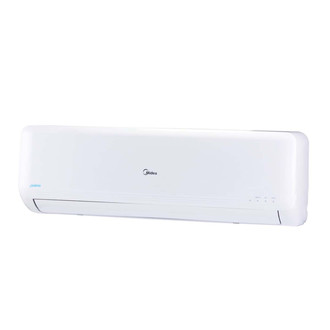

Indoor unit
| Indoor unit depth |
188 mm |
| Indoor unit height |
255 mm |
| Indoor unit width |
770 mm |
| Noise level (indoor unit) |
36 dB |
| Indoor unit weight |
7000 g |
| Cooling airflow (indoor unit) |
600 m³/h |
| Indoor unit type |
Wall-mountable |
| Indoor units quantity |
1 |
Outdoor unit
| Outdoor unit width |
700 mm |
| Outdoor unit depth |
240 mm |
| Outdoor unit height |
540 mm |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
54 dB |
Technical details
| Cooling capacity (min) |
3300 BTU/h |
| Cooling capacity (max) |
11500 BTU/h |
| Type |
Split system air conditioner |
| Refrigerating medium |
R410A |
| Refrigerating medium weight |
550 g |
| Ionizer |
Y |
Power
| Power consumption (cooling) (min) |
230 W |
| Power consumption (cooling) (max) |
1120 W |
| Current |
3.5 A |
Additionally
| Cooling energy efficiency |
12 |
| Remote controlled |
Y |
R410A/550g, 9000(3300-11500)BTU/h, 820(230-1120)W, 3.5A, 220-240V, 50Hz, indoor unit 770 x 188 x 255mm kg, outdoor unit 700 x 240 x 540mm
Louver Position Memory Function
Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
Two Ways Piping Connection
Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose.
Turbo Mode
The air conditioner will maximize the output of cooling or heating capacity, make the room cool down rapidly, and attain the desired temperature in the shortest time.
Fresco Tech
Midea Fresco Tech brings you clean and refreshing air fills your room with the soothing scent of nature
1) Silver Ion Filter: The Silver ion can kill bacteria or prevent their activity at very low density by destroying their inner-configuration and absorbing their elements in cells
2) Bio Filter: Consist of specialized biological enzyme and fungi and HEPA filter. Catch small dust particles, bacteria, microbe, eliminate bacteria by dissolving their cell wall
3) Negative Ion Filter: Release negative ion to purify air, sterilize bacteria and eliminate tiredness.
4) Ionizer: Release negative ions, eliminate odor, dust, smoke and pollen particles to give you fresh and healthy air.
Louver Position Memory Function
When you start the unit next time, the angle of horizontal louver will automatically move to the same position as you set last time.
Ways Piping Connection
Both left and right sides of the indoor unit are possible for outstretch of connective piping and drainage hose.
Refrigerant Leakage Detection
With this new technology, the indoor unit will alarm when the outdoor unit detects a condition of refrigerant leakage.
DC Inverter
180° Sine Wave DC Inverter Driving Technology
Compared with 120° Square Wave DC Inverter driving tecgnology, the new 180° Sine Wave DC Inverter driving technology has considerable advantages.
1. Applicable much wider range of frequency and voltage
2. Higher efficiency and energy saving
3. Smoothly running, low noise and vibration
4. More reliable in application
User friendly remote control with LCD display
