Performance
| Processor frequency |
400 MHz |
| Memory type |
DDR2 |
| Internal memory |
64 MB |
| Flash memory |
128 MB |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| SFP+ module slots quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45 |
| SFP module slots quantity |
10 |
| DC-in jack |
Y |
Power
| Power consumption (max) |
20 W |
| Input current |
1.2 A |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
Y |
Design
| Rack mounting |
Y |
| Wall mountable |
Y |
1 x Gigabit Ethernet, Layer 3, 8V - 30V, 64 MB RAM, CPU 400 MHz, 20W, White

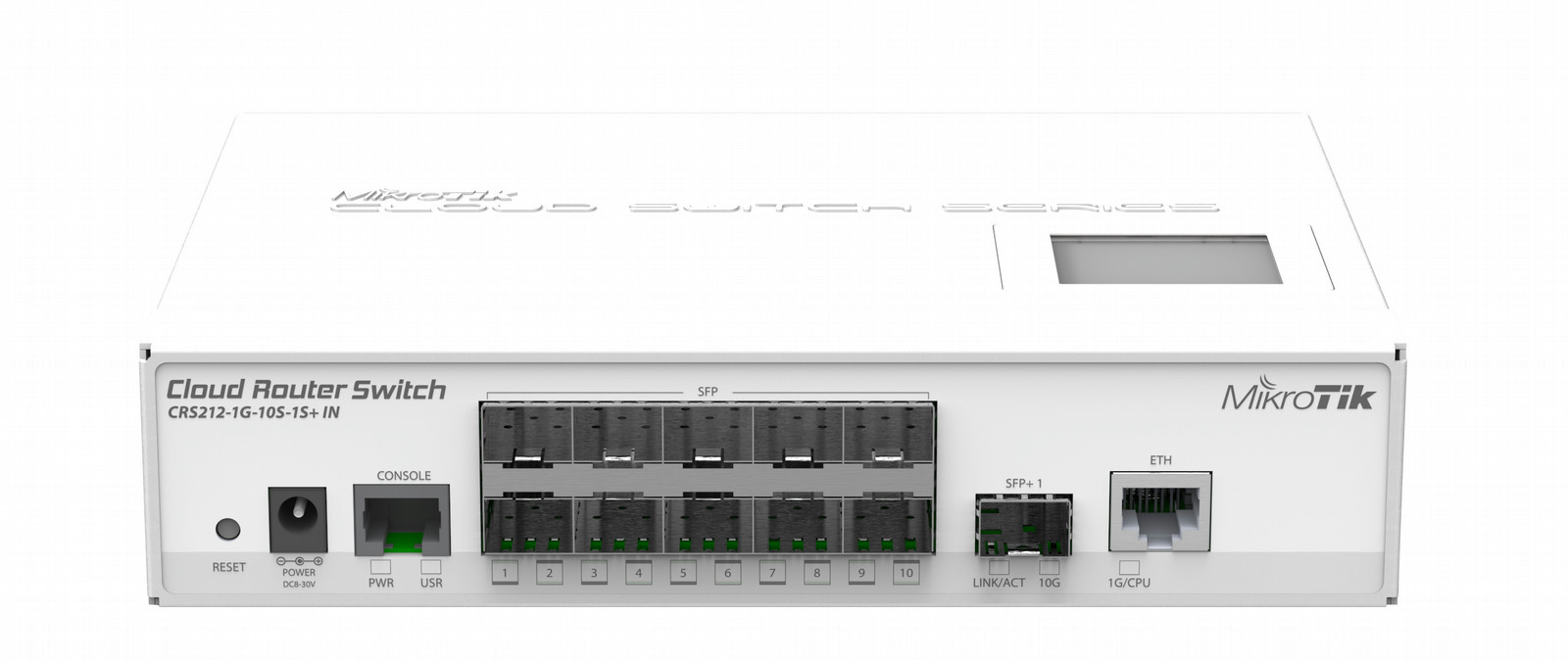

Cloud Router Switch 212-1G-10S-1S+IN is new “small size low cost” member of our CRS series. It comes with one Gigabit Ethernet RJ45 port, ten SFP cages and one 10G SFP+ cage, as well as LCD panel and serial port (RJ45). Product includes indoor desktop case and power supply. Special ears are provided for mounting the unit in rack.
Our CRS series combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.
