Performance
| Auto MDI/MDI-X |
Y |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
N |
| Internal memory |
64 MB |
| Flash memory |
16 MB |
| Built-in processor |
Y |
Design
| Placement |
Table |
| LED indicators |
Y |
| Internal |
N |
Antenna
| Antenna gain level (max) |
1.2 dBi |
Power
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| USB connector type |
USB Type-B |
| DC-in jack |
Y |
Additionally

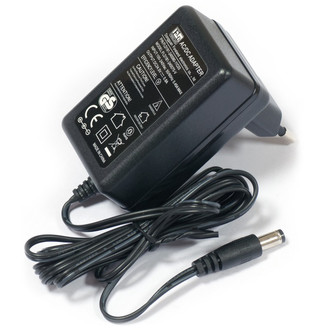

| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
650 MHz, 64 MB RAM, Wi-Fi 802.11b/g/n, 2.4GHz, PoE, microUSB, 11-57 V, RouterOS, 68 x 68 x 19 mm
The mAP (micro Access Point) is a tiny size wireless Dual-Chain 2.4GHz Access Point with full RouterOS capabilities. It is very portable, since it accepts power from a wide variety of sources - USB, Passive PoE and power jack. It also works as a PoE injector - the second Ethernet port provides up to 500mA of power to another device, for example, you can connect a SXT CPE device to it.
